Removing tail light

→ Before removing tail lights, remove ignition key and switch off light.

1. Open rear lid.

Fig 1: Loosening lamp

Courtesy of PORSCHE OF NORTH AMERICA, INC.

2. Remove the two caps -1-  with a screwdriver or similar tool. See Fig 1.

3. Unscrew the two fastening screws -2-  . See Fig 1.

Fig 2: First generation tail light

Courtesy of PORSCHE OF NORTH AMERICA, INC.

4. Pull out light unit sideways in -direction of arrow-  and also in area of ball head -3-  . See Fig 2.

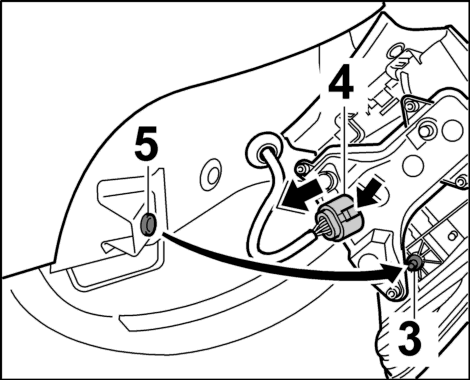

Fig 3: Second generation tail light

Courtesy of PORSCHE OF NORTH AMERICA, INC.

5. Press detent on plug connection -4-  and pull connector apart. See Fig 3.
