Removing/Installing Control Module For Automatic Headlight Beam Adjustment: Removal

  1. Remove footwell bulkhead and right air guide.
  2. Undo control module from below (2 sheetmetal screws). Unlock the electrical plug connection and take out control module.

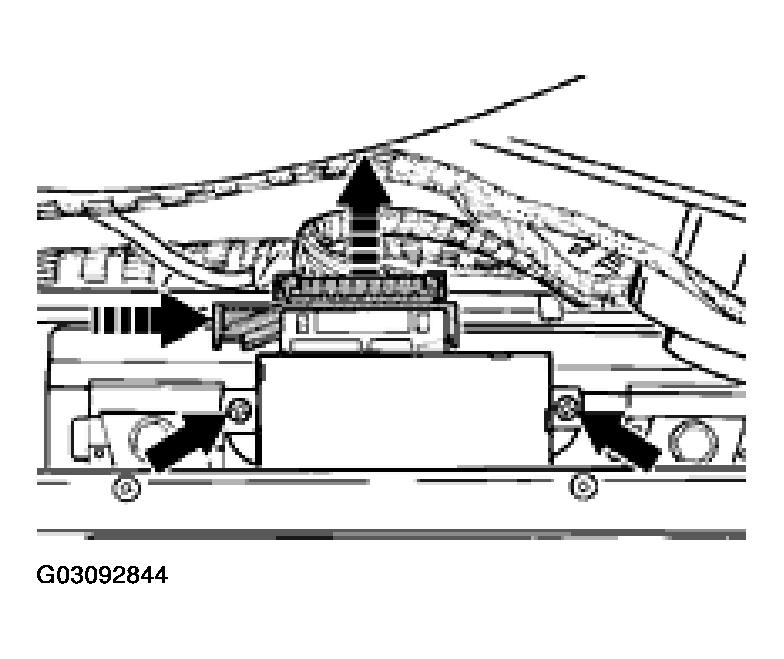

    Fig 1: Locating Control Module For Automatic Headlight Beam Adjustment Retaining Screws
    G03092844Courtesy of PORSCHE OF NORTH AMERICA, INC.
