Removing/Installing Angle Sensor For Automatic Headlight Beam Adjustment: Removal

  1. Remove front underside panel.
  2. Hold intermediate link on rotary lever with second open-ended wrench and release. Push back the rubber cover over the electrical plug connection and remove electrical plug connection from the angle sensor.
    Fig 1: Holding Intermediate Link On Rotary Lever With Second Open-Ended Wrench
    G03092841Courtesy of PORSCHE OF NORTH AMERICA, INC.
  3. Detach retaining bracket for angle sensor from the side member underneath.

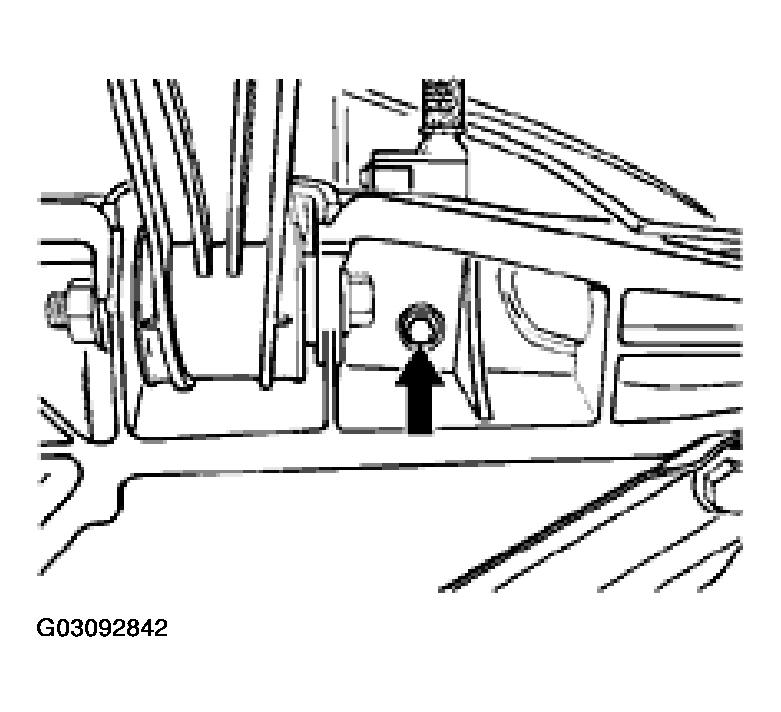

    Fig 2: Detaching Retaining Bracket From Side Member
    G03092842Courtesy of PORSCHE OF NORTH AMERICA, INC.
  4. Detach the angle sensor from the retaining bracket and remove it.
