Removing And Installing Rear Angle Sensor For Automatic Headlight Beam Adjustment: Removal

  1. Hold intermediate link on rotary lever with second open-ended wrench and release. Push back the rubber cover over the electrical plug connection and remove electrical plug connection from the angle sensor.
  2. Undo both fastening screws on the bracket and remove angle sensor.

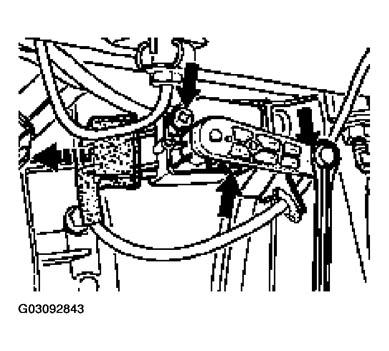

    Fig 1: Removing Angle Sensor For Automatic Headlight Beam Adjustment
    G03092843Courtesy of PORSCHE OF NORTH AMERICA, INC.
