Removing And Installing Main Light Switch: Removal
- Disconnect the battery and cover the terminal or battery.

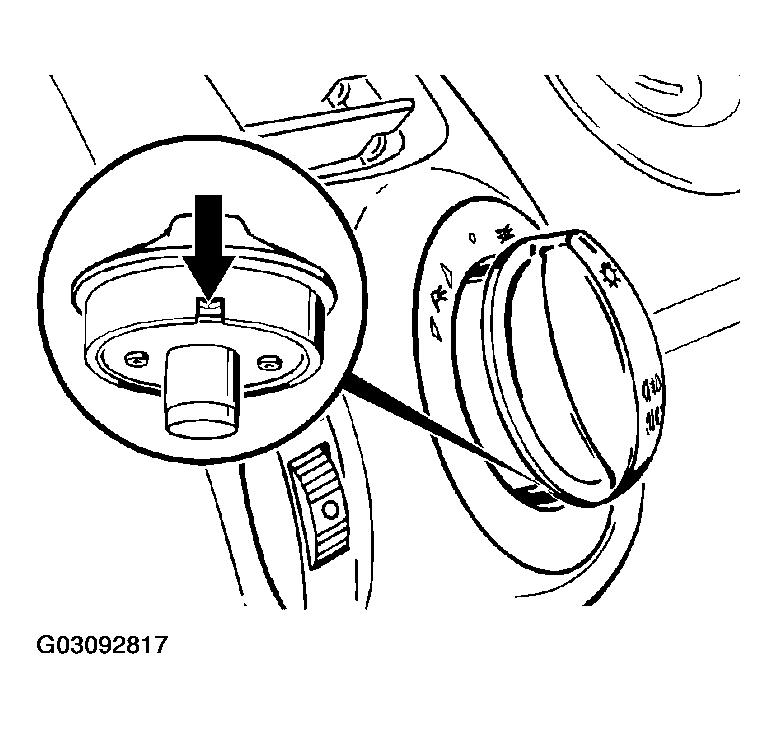

- Remove button of the light switch. Pull out the button as far as it will go and press in the locking element on the lower side with a small screwdriver.
Courtesy of PORSCHE OF NORTH AMERICA, INC.

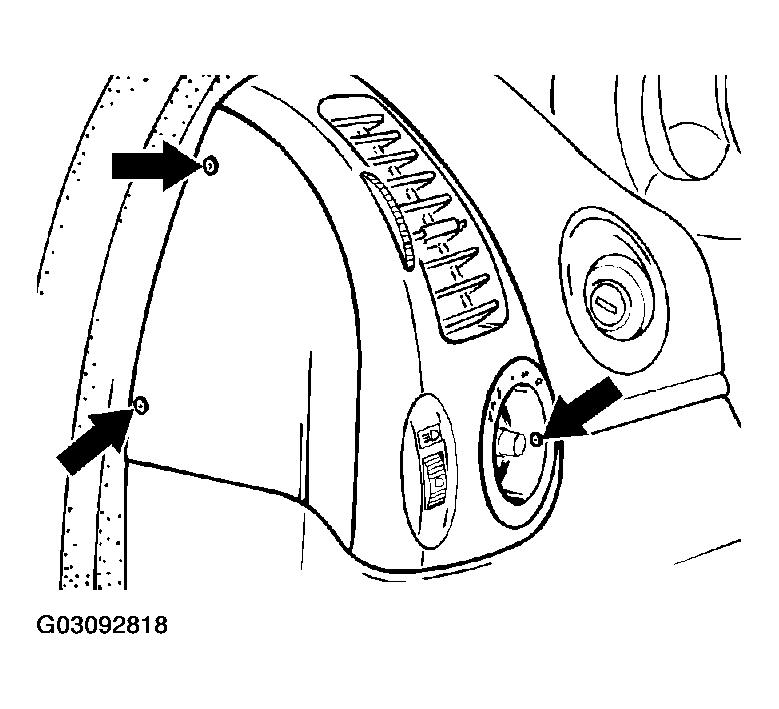

- Undo three 4.0 x 18 Torx screws of the left side vent and carefully pull the side vent out of the dashboard. One Torx screw is located in the light switch on the right.
Courtesy of PORSCHE OF NORTH AMERICA, INC.
- Disconnect electrical plug connections.
- Undo M16 x 1 hexagon nut of the light switch.

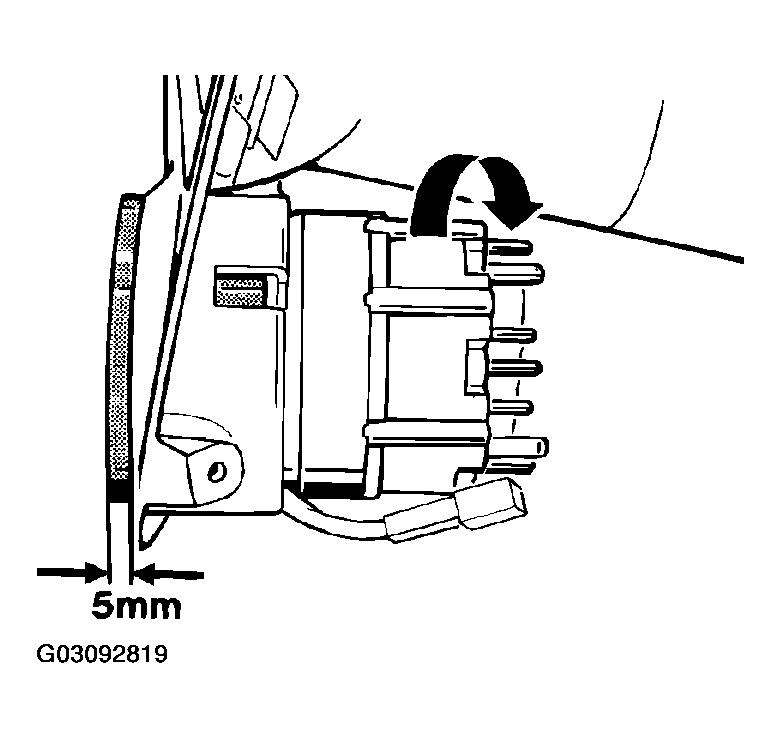

- Pull the lighting unit switch out of the side vent to the front by approx. 5 mm.
- Remove light switch from the side vent by turning it slightly in clockwise direction.
Courtesy of PORSCHE OF NORTH AMERICA, INC.
