Removing And Installing Ignition Unit For Gas Discharge Lamp: Removal

  1. Switch off light. Disengage headlight housing and pull forwards a little.
  2. Disconnect the electrical plug connection of the automatic headlight beam adjustment (ALWR) take out headlight housing.
  3. Release cover with control module and open. Undo electrical plug connection on the gas discharge lamp (bayonet lock).
  4. Undo fastening screws (2 screws) on the ignition unit and take out ignition unit. Pull off electrical plug connection.

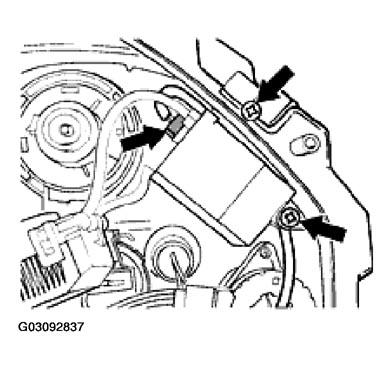

    Fig 1: Removing Ignition Unit For Gas Discharge Lamp Fastening Screws
    G03092837Courtesy of PORSCHE OF NORTH AMERICA, INC.
