Removing And Installing Halogen Bulb: Removal

Bulb for high beam and dipped beam headlights.

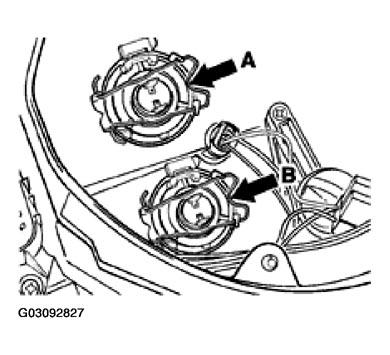

Fig 1: Identifying Bulb For High Beam And Dipped Beam Headlights

Courtesy of PORSCHE OF NORTH AMERICA, INC.

1. Dipped beam headlight
2. High beam headlight

1. Remove and install main headlight (refer to REMOVING AND INSTALLING HEADLIGHTS  ).
2. Open rear cover and disconnect the electrical plug connection of the defective bulb.
3. Press down retaining bracket (arrow) and swivel to the side. Remove defective bulb.
