Removing And Installing Control Module For Gas Discharge Lamp: Removal

  1. Switch off light. Disengage headlight housing and pull forwards a little.
  2. Disconnect the electrical plug connection of the automatic headlight beam adjustment (ALWR) take out headlight housing.
  3. Release cover with control module and open.

    Disconnect the electrical plug connection from the control module and undo the fastening screws (3 screws).

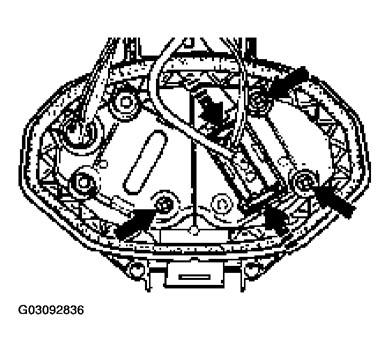

    Fig 1: Loosening Fastening Screws For Control Module For Gas Discharge Lamp
    G03092836Courtesy of PORSCHE OF NORTH AMERICA, INC.
  4. Remove the control module from the lid.
