Removing And Installing Bulb For Tail Light: Removal

Bulb holder for tail light.

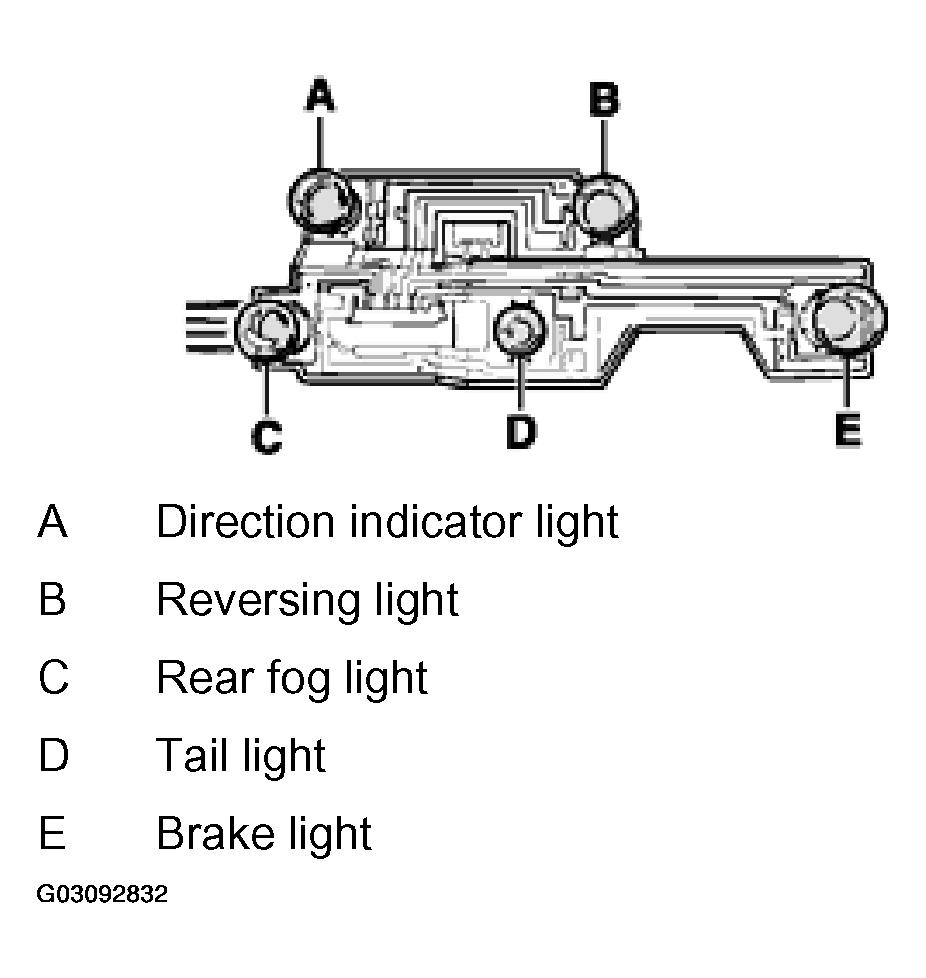

Fig 1: Identifying Tail Light Bulb Holder

Courtesy of PORSCHE OF NORTH AMERICA, INC.

1. Direction indicator light
2. Reversing light
3. Rear fog light
4. Tail light
5. Brake light

1. Take out carpet lining of tail light.
2. Push up locking lever of tail light bracket and remove bulb holder.
3. Take defective bulb out of the bulb holder (bayonet lock).
