Removing And Installing Bulb For Fog Light: Removal

  1. Remove and install main headlight (Refer to REMOVING AND INSTALLING HEADLIGHTS  ).
  2. Rotate the round cover in the headlight housing clockwise and remove.
  3. Disconnect electrical connection of defective bulb (do not pull on the wires).
  4. Press down retaining bracket (arrow) and swivel downwards. Remove defective bulb.

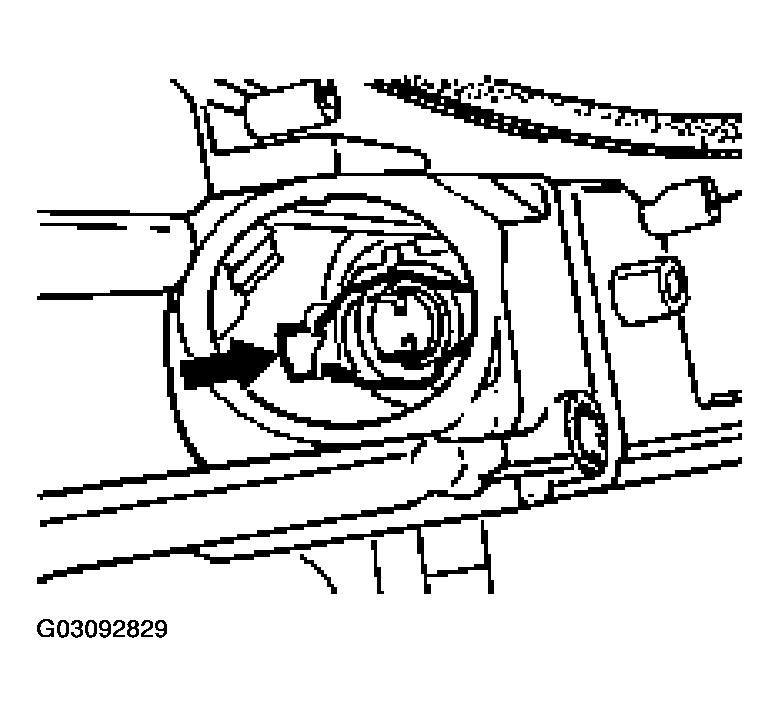

    Fig 1: Removing Defective Fog Light Bulb
    G03092829Courtesy of PORSCHE OF NORTH AMERICA, INC.
