Removing And Installing Bulb For Direction Indicator Light: Removal

  1. Remove and install main headlight (Refer to REMOVING AND INSTALLING HEADLIGHTS  .)
  2. Turn bulb socket counterclockwise and remove from the headlight housing.

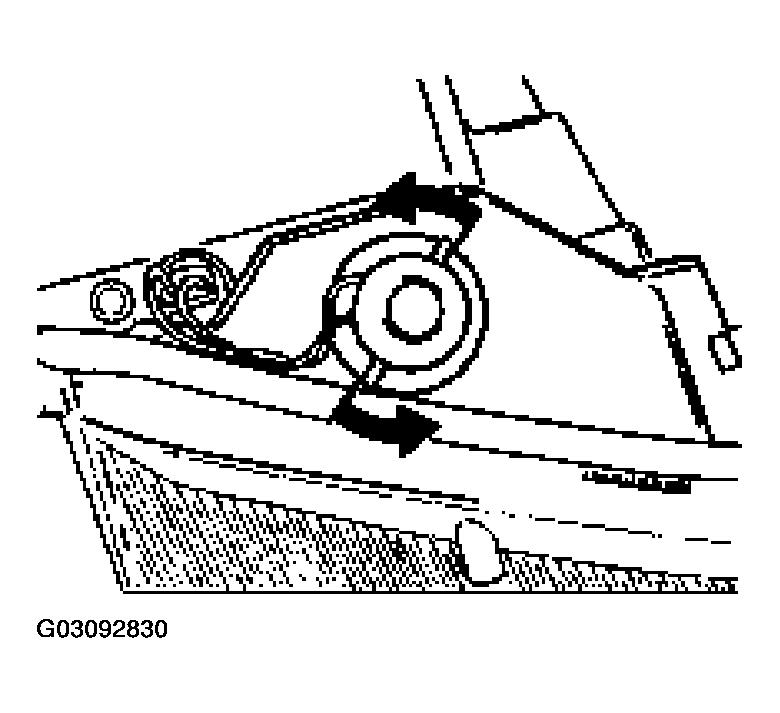

    Fig 1: Removing Bulb Socket From Headlight Housing
    G03092830Courtesy of PORSCHE OF NORTH AMERICA, INC.
  3. Take defective bulb out of the bulb socket (bayonet lock).
