Removing And Installing Bulb For Additional Brake Light: Removal

  1. Open the convertible top until the convertible top compartment lid is fully open. Remove ignition key.
  2. Undo both fastening screws and remove the cover. Disconnect electrical plug connection and disengage all fastening tabs of the bulb holder.

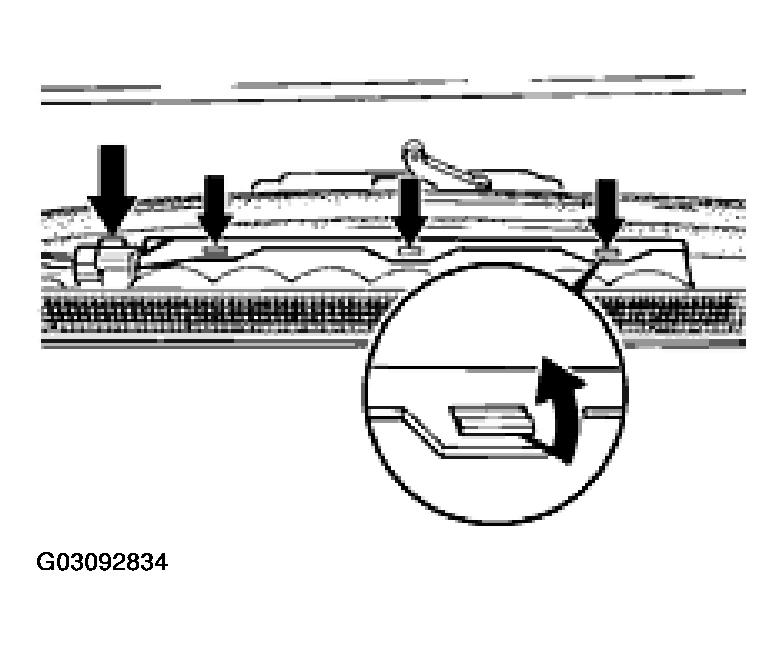

    Fig 1: Disengaging Fastening Tabs Of Bulb Holder For Additional Brake Light
    G03092834Courtesy of PORSCHE OF NORTH AMERICA, INC.
  3. Remove bulb holder and take out defective bulb.
