Masking Film For Left/Right-Hand Traffic: Notes

Self-adhesive film is available for masking the dipped-beam headlights for left-hand drive vehicles (Germany) in countries where vehicles drive on the left (England) or for right-hand drive vehicles in countries where vehicles drive on the right.

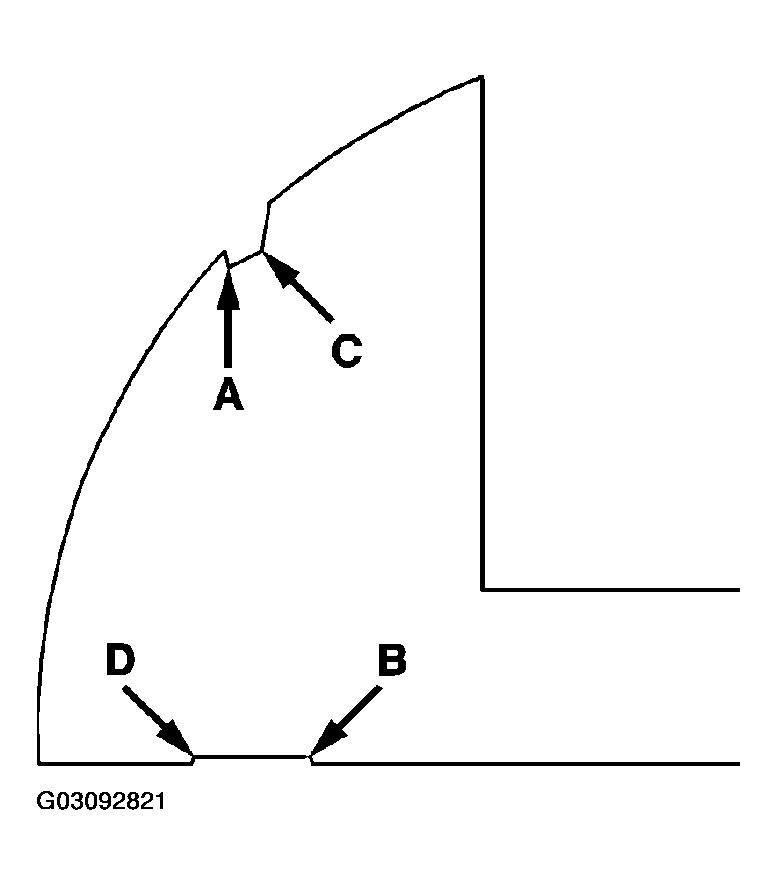

Fig 1: Identifying Masking Points For Dipped-Beam Headlights For Left-Hand Drive Vehicles

Courtesy of PORSCHE OF NORTH AMERICA, INC.

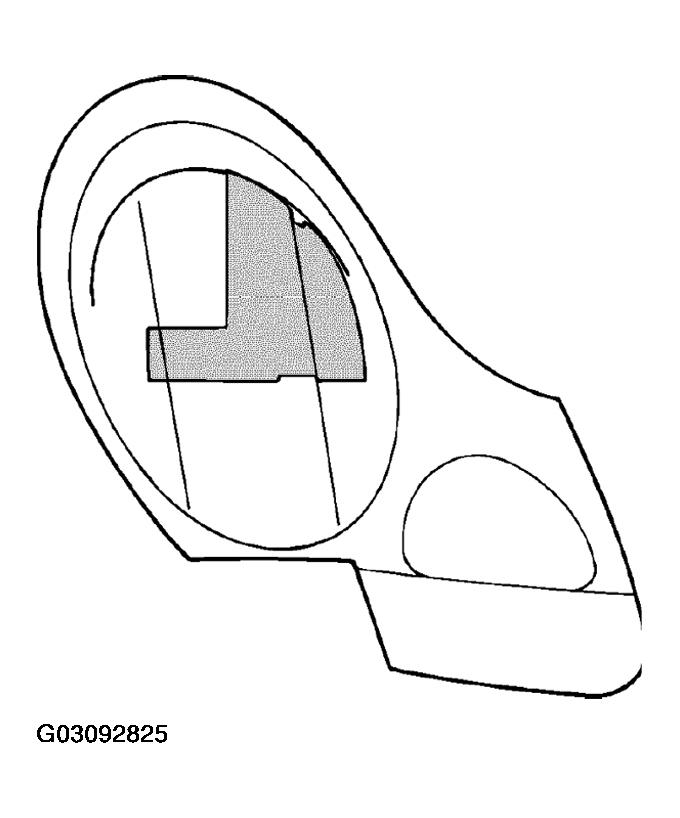

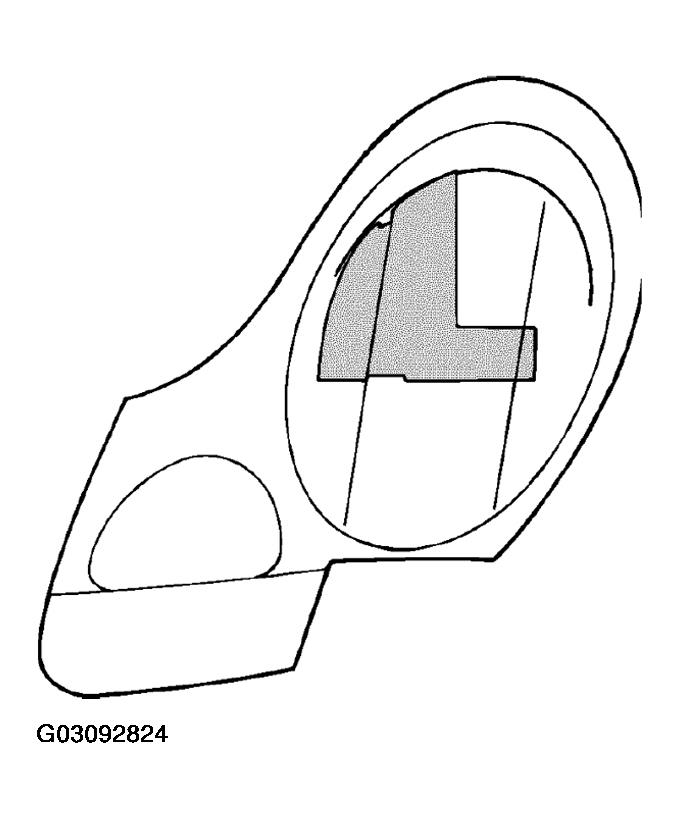

The masking film with the points (notch) A and B in the figure must be affixed in line with the outer line on the right-hand headlight lens. See Figure . Points C and D on the inner line of the left-hand headlight lens. See Figure .

The upper ends of the lines on the headlight lenses are the points (notch) A (right-hand side) and B (left-hand side) on the masking films. See Fig 2 .

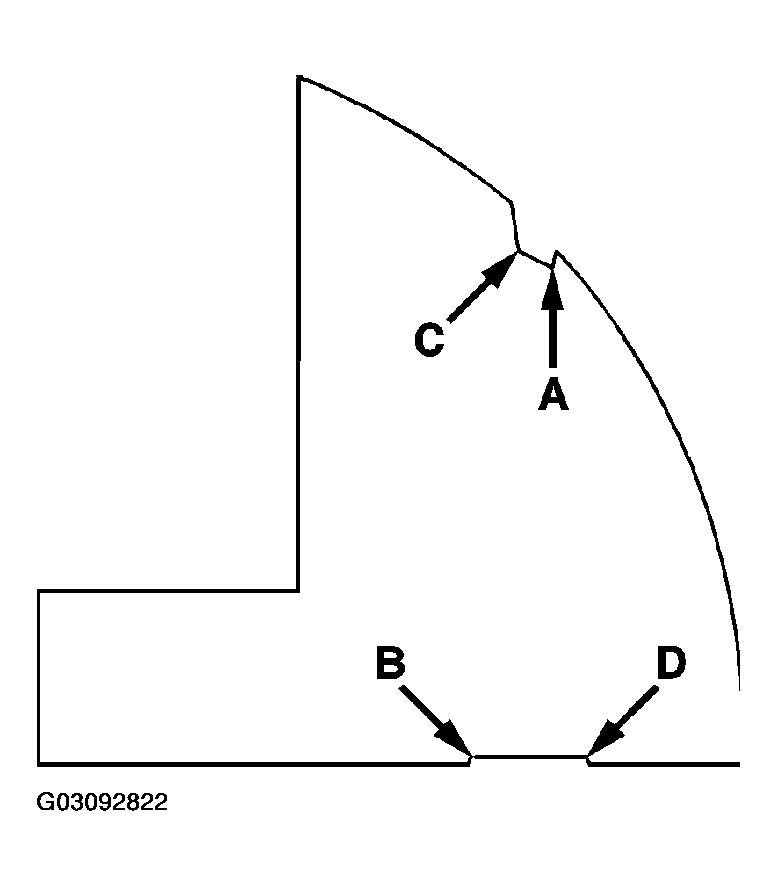

Fig 2: Identifying Masking Points For Dipped-Beam Headlights For Right-Hand Drive Vehicles

Courtesy of PORSCHE OF NORTH AMERICA, INC.

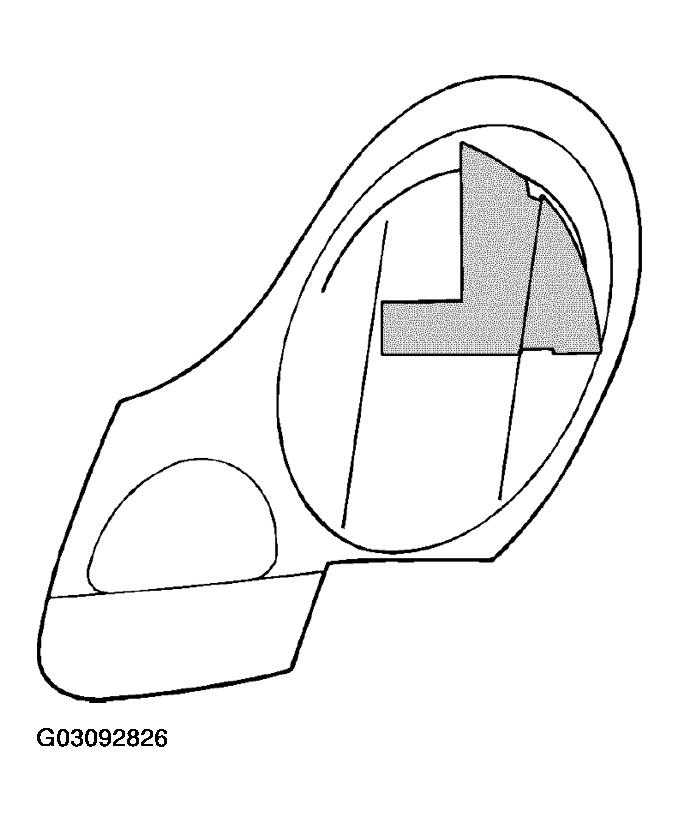

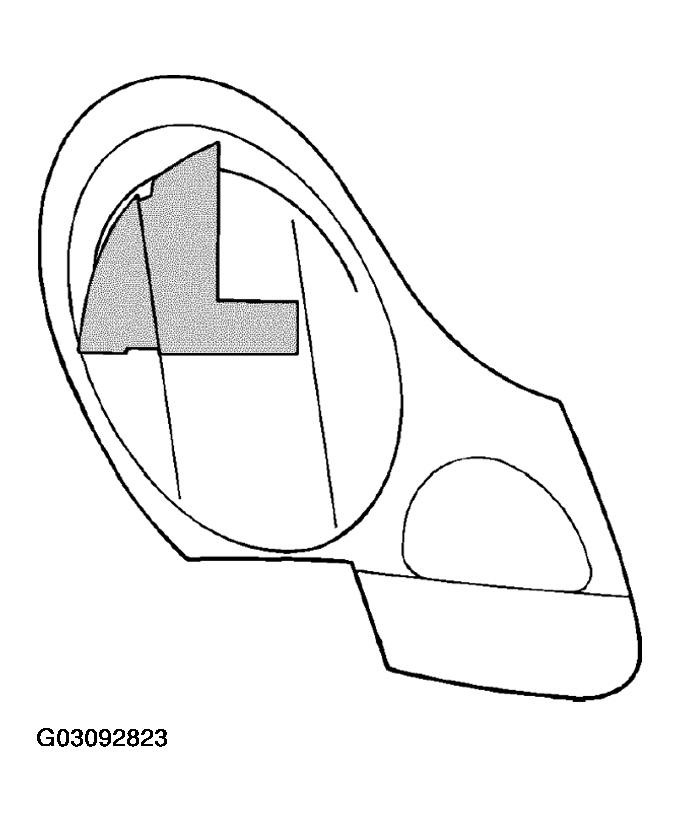

The masking film with the points (notch) A and B in the figure must be affixed in line with the outer line on the left-hand headlight lens. Points C and D on the inner line of the right-hand headlight lens. See Figure .

The upper ends of the lines on the headlight lenses are the points (notch) A (left-hand side) and B (right-hand side) on the masking films. See Figure .
