Camber fine adjustment

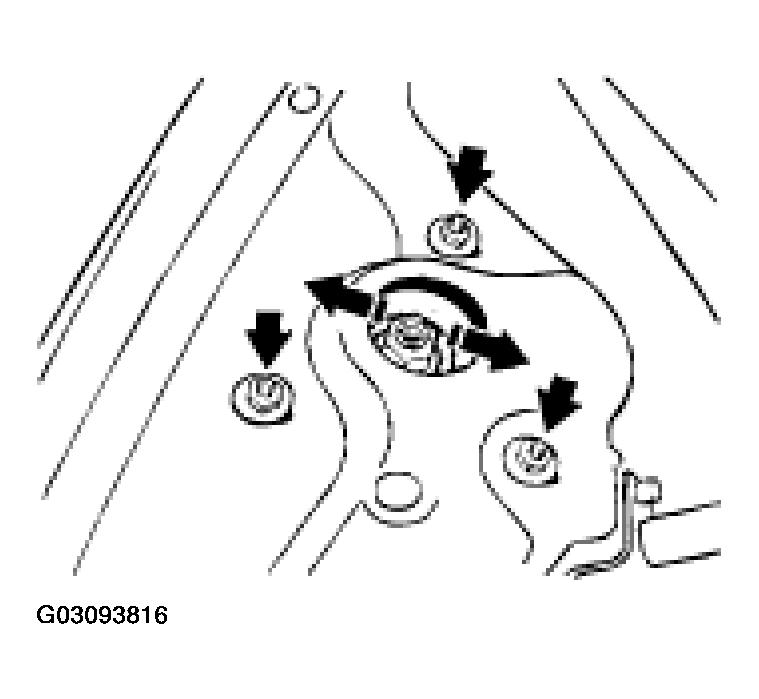

- The camber is adjusted by moving the spring strut transversely. For this purpose, loosen the three M8 fastening nuts -arrows- of the spring-strut mount. To shift the spring strut inwards or outwards -arrows- , remove the cover cap over the piston rod. See Fig 1.
