Removing And Installing Valve (Steel Valve) (Turbo II Wheel): Installation
- Insert valve -5-
with the fitted foot seal -(6)-
into the wheel. The foot seal -6-

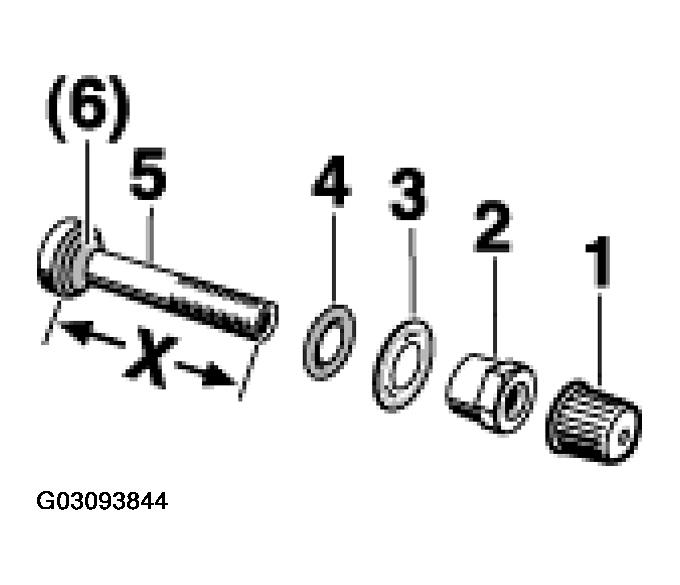

is always fitted with new valves. See Fig 1.
Courtesy of PORSCHE OF NORTH AMERICA, INC.
- Place O-ring -4-
carefully on to the valve from the outside. Mount disc -3-
in the correct position -arrow-

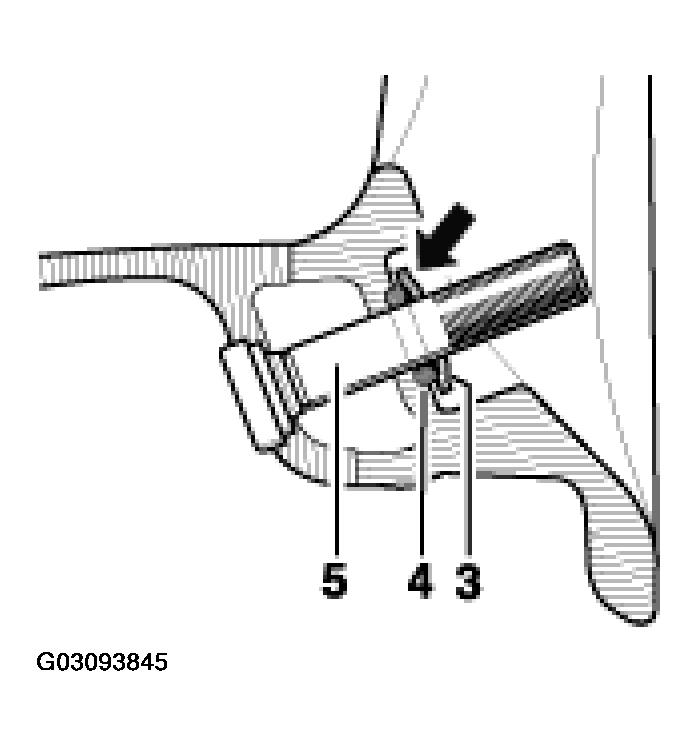

. The O-ring then lies in the disc depression. See Fig 2.
Courtesy of PORSCHE OF NORTH AMERICA, INC.
- Install the fastening nut -2-
with the shaft facing towards the valve foot. Tighten the fastening nut -2-

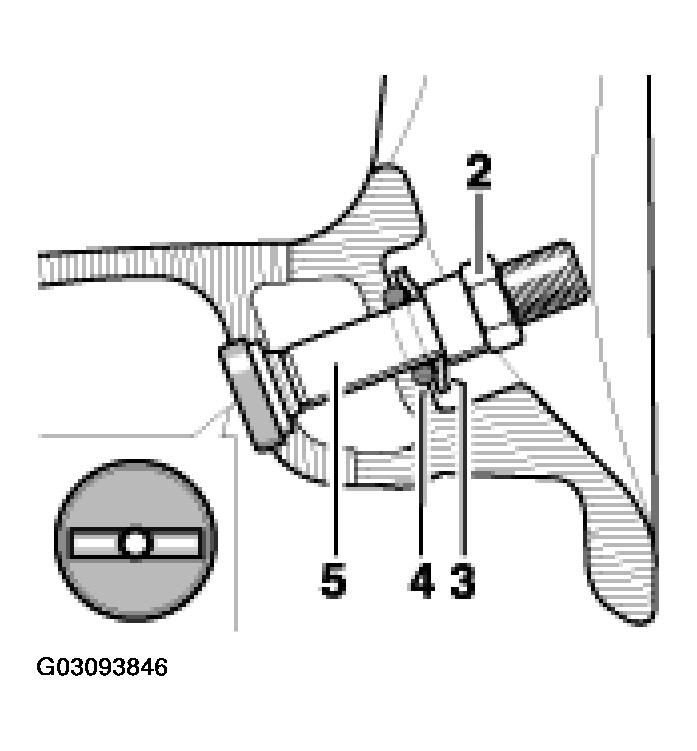

with a torque wrench to 3.5 (2.5 ft.lb) +/- 0.5 Nm (0.5 ft.lb). When tightening, counter with a screwdriver on the slot of the valve foot. See Fig 3.
