Connector assignment, control module

WARNING: This page is about a different variant/trim than selected.

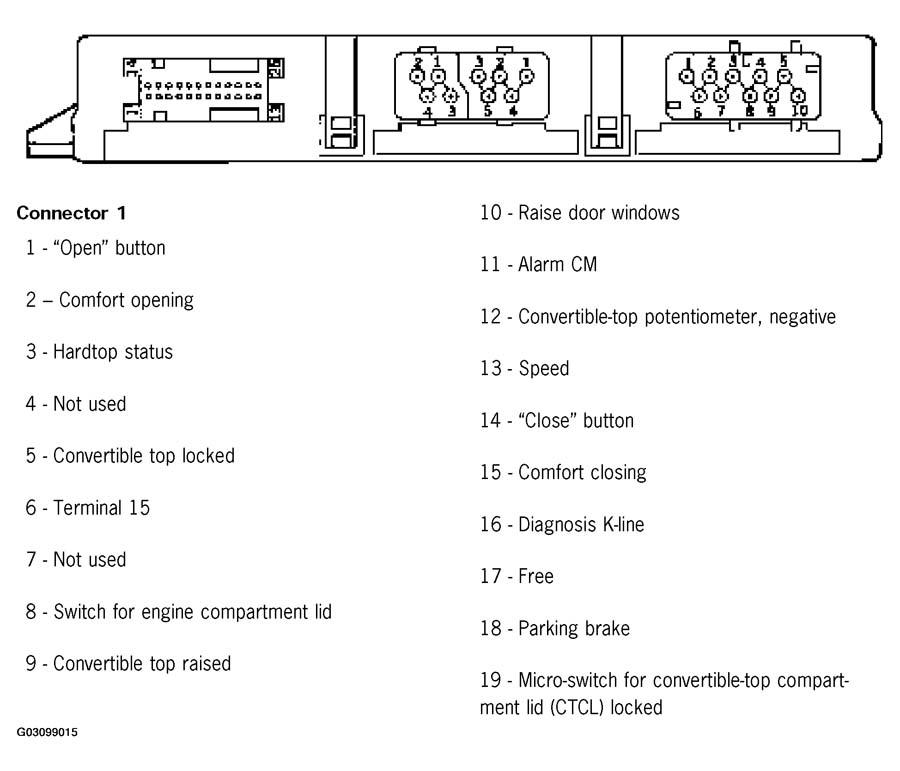

Fig 1: Control Module Connector Assignment (1 Of 2)
G03099015Courtesy of PORSCHE OF NORTH AMERICA, INC.

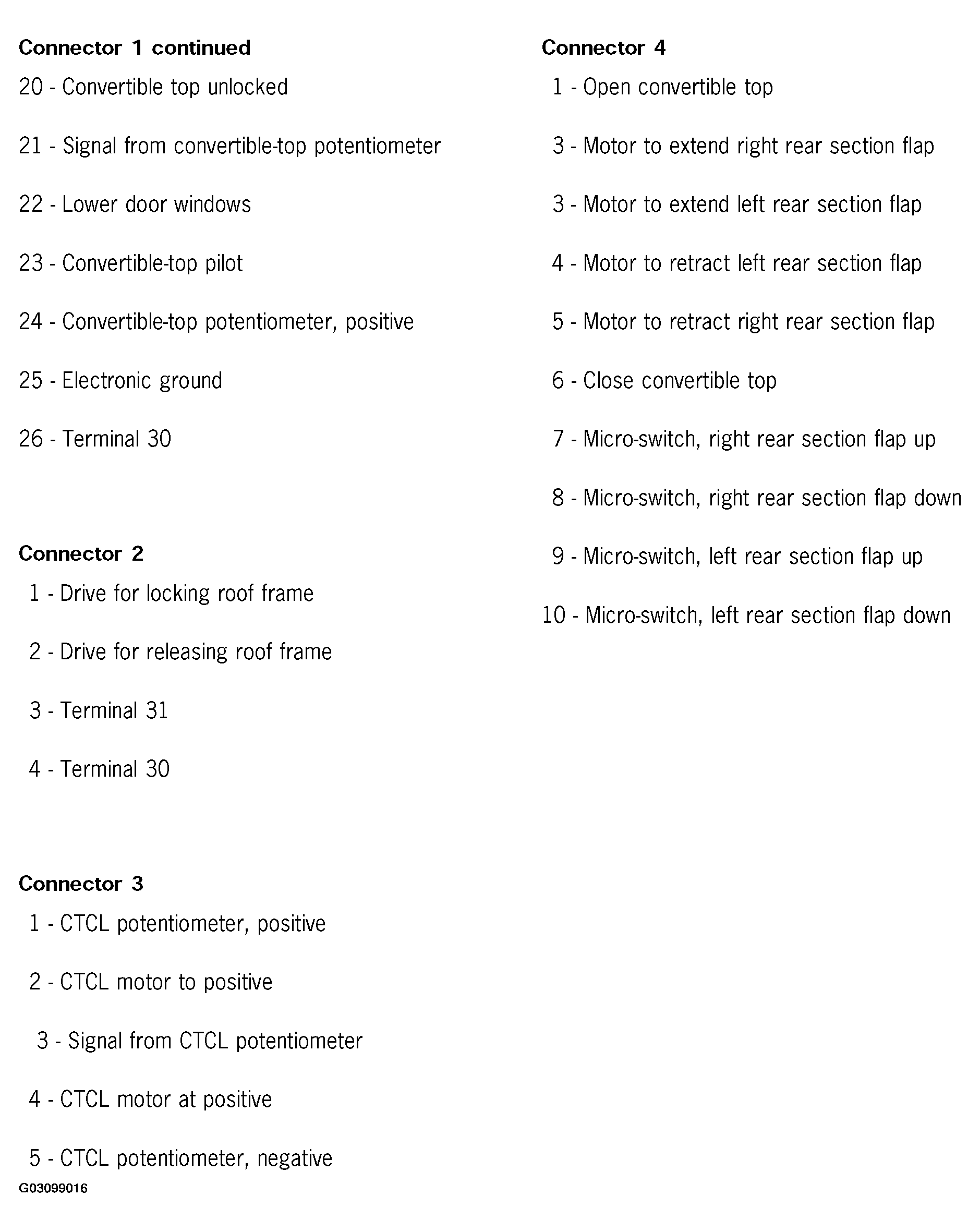

Fig 2: Control Module Connector Assignment (2 Of 2)
G03099016Courtesy of PORSCHE OF NORTH AMERICA, INC.
