Section 5 (Convertible Top, Hardtop Diagnosis - 911 CARRERA (996))
>>
Component arrangement
Component arrangement
WARNING:
This page is about a different variant/trim than selected.

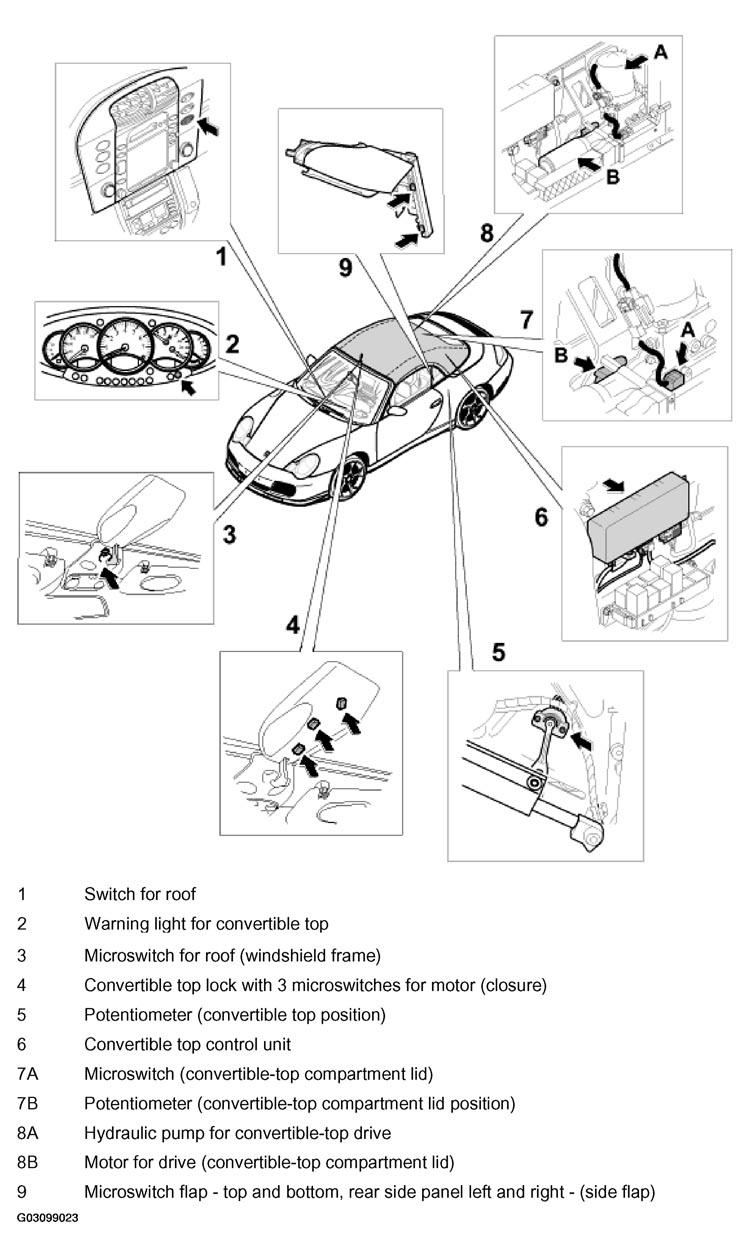

Fig 1: Identifying Component Arrangement (As Of Model Year 2003)
Courtesy of PORSCHE OF NORTH AMERICA, INC.
