Notes on removal and installation: Removal

WARNING: This page is about a different variant/trim than selected.

Remove brake disc, parking brake shoes, brake disc cover and speed sensor.
Press out rear-wheel hub with pressure piece P 297A (tool A). Use the separator (tool B) for support. If there is not enough space for the wheel hub between the press, appropriate shims will additionally be necessary.

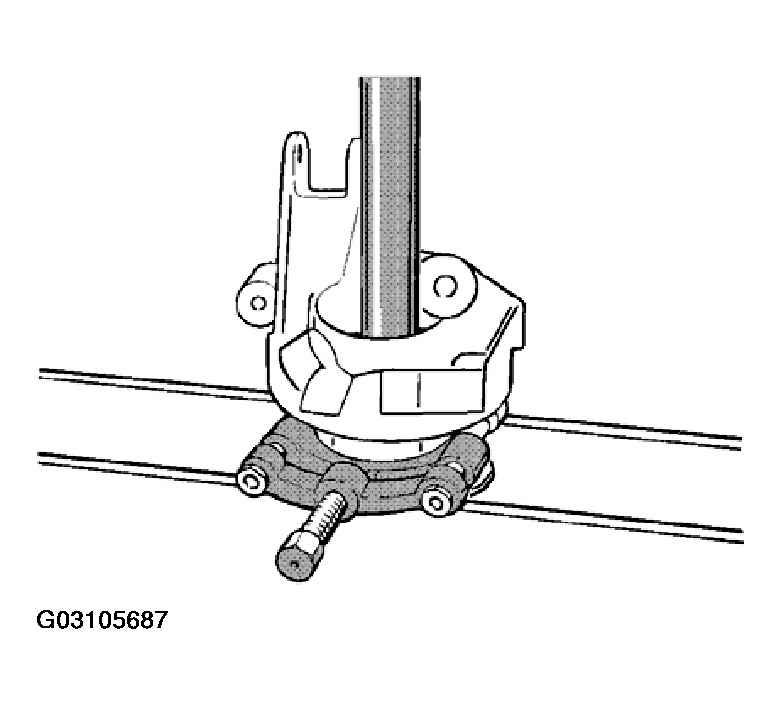

Fig 1: Pressing Out Rear-Wheel Hub Using Pressure Piece
Courtesy of PORSCHE OF NORTH AMERICA, INC.
Remove retainer plate (lid) (four screws).
Heat wheel bearing housing to approx. 100° C (max. 120° C). Press out wheel bearing with tubular piece VW 415 A (tool C).

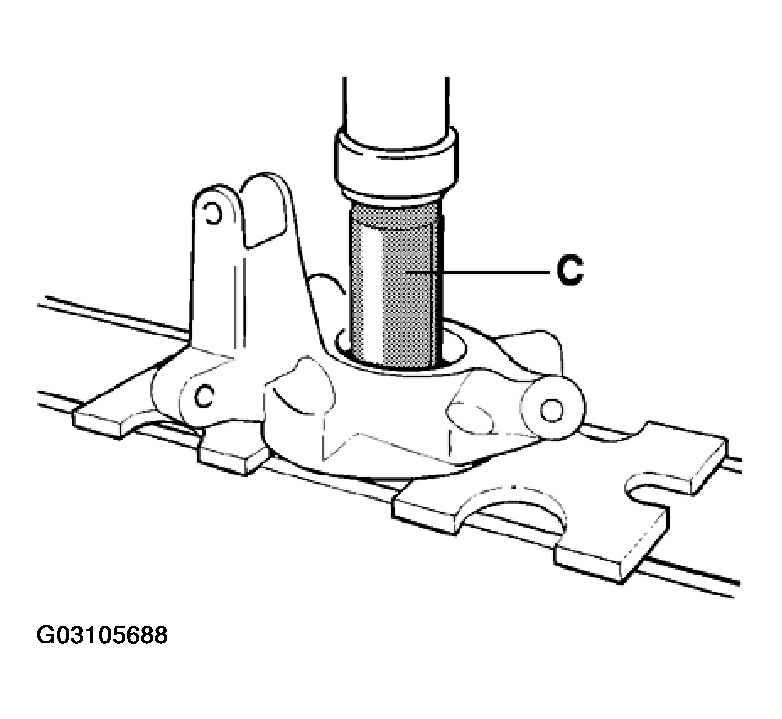

Fig 2: Pressing Out Wheel Bearing Using Tubular Piece
Courtesy of PORSCHE OF NORTH AMERICA, INC.
Press inner wheel bearing race off the wheel hub (see Fig 4 ). To do this, use pressure piece P 297A (tool A) in combination with the separator (tool B).
NOTE: First pull the inner bearing race several millimeters off the wheel hub (see Fig 3 ) so that the separator can be put into place. For this purpose, use a two-claw puller in combination with a suitable pressure piece (for example, VW 433).

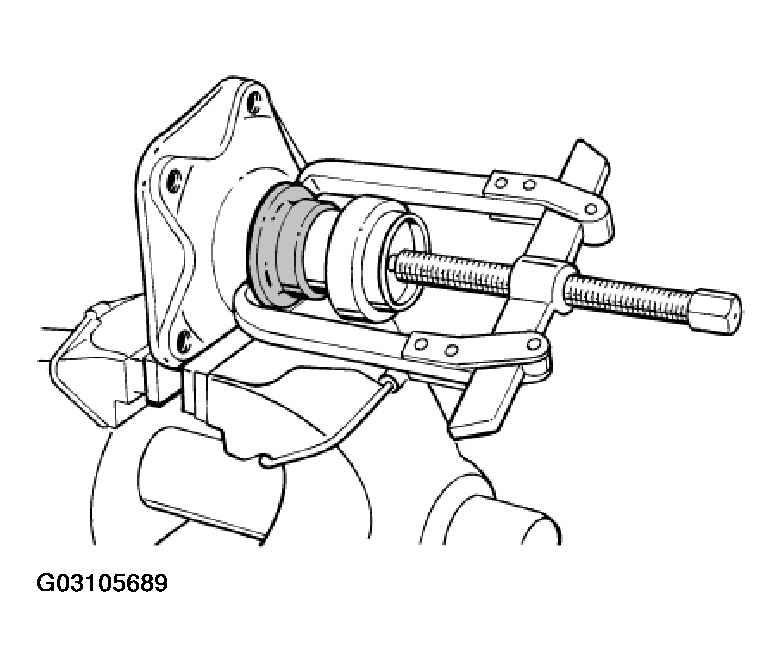

Fig 3: Pulling Inner Bearing Using Two-Claw Puller In Combination With Suitable Pressure Piece
Courtesy of PORSCHE OF NORTH AMERICA, INC.

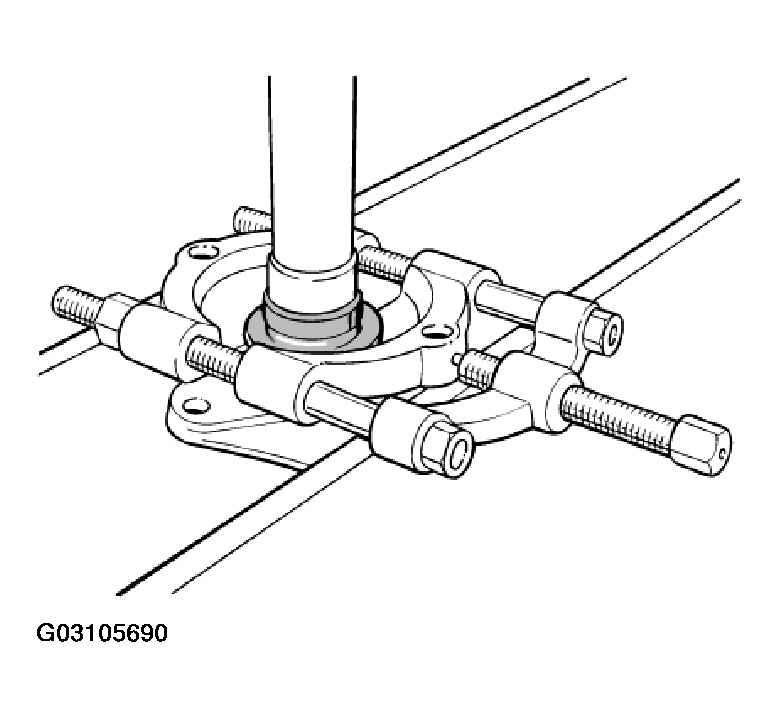

Fig 4: Pressing Inner Wheel Bearing From Wheel Hub
Courtesy of PORSCHE OF NORTH AMERICA, INC.
