Removing and installing rear tie rod (toe control arm): Installation

WARNING: This page is about a different variant/trim than selected.
  1. Install in reverse order. Before installing, give all parts a visual check.
    NOTE: When replacing tie rods, pay close attention to the correct allocation. Install only identical tie rods - version A or B - on a vehicle. For a detailed explanation - distinguishing characteristics and Part No. - refer to TIE ROD REPLACEMENT  .

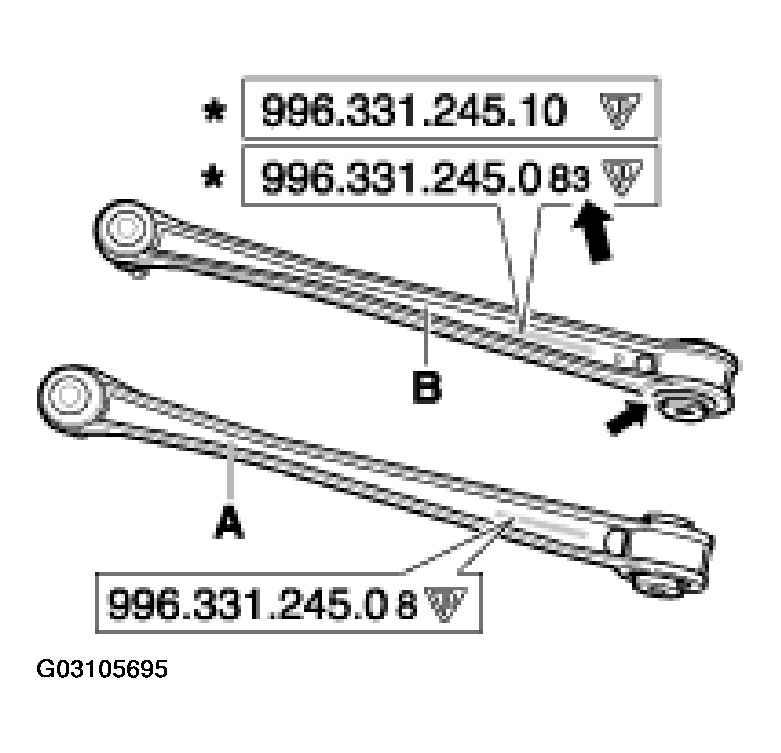

    Fig 1: Identifying Different Versions Of Tie Rod
    G03105695Courtesy of PORSCHE OF NORTH AMERICA, INC.
  2. Replace fastening nuts. Use correct tightening torques.
  3. Perform a suspension alignment after installation.
