Removing and installing drive shaft (Tiptronic transmission): Tools
WARNING: This page is about a different variant/trim than selected.

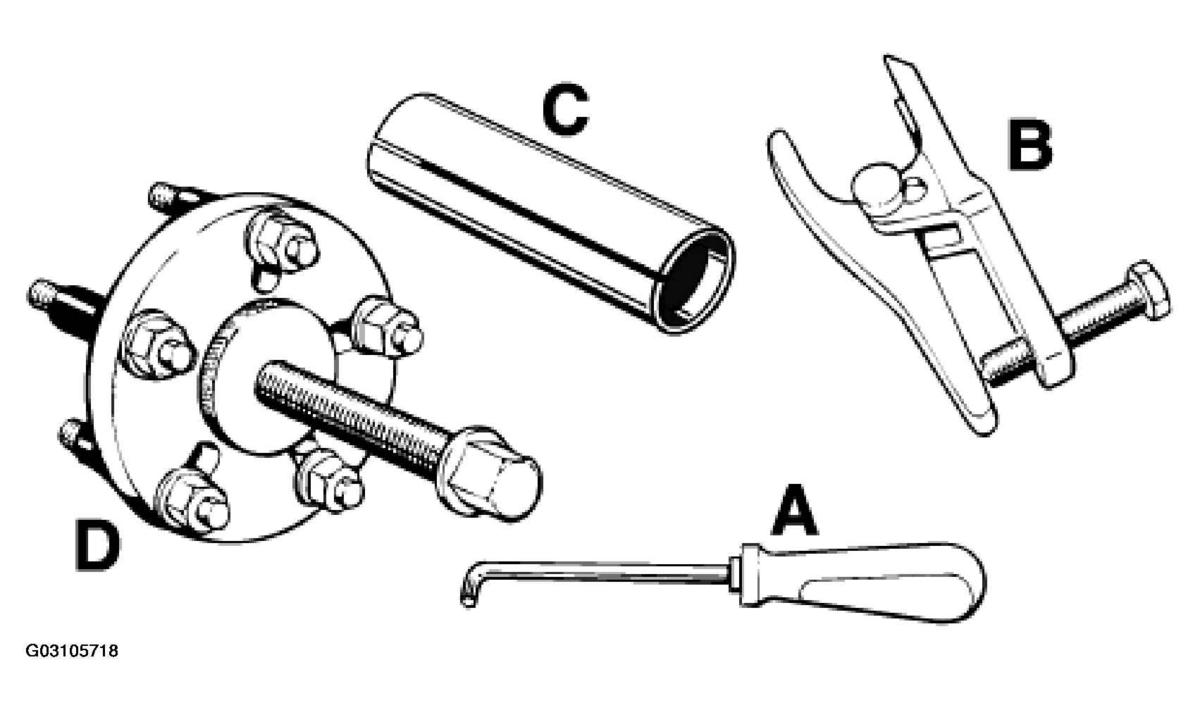

SPECIAL TOOLS DESCRIPTION
| Item | Designation | Special tool | Explanation |
|---|---|---|---|
| A | Torx screwdriver | 9546 | To counter the ball joint when assembling and disassembling the fastening nuts. |
| B | Press-out tool (ball joint extractor) | 9560 | To press out the ball joints on the wheel carrier. |
| C | Protective tube | Shop-made | For protecting the drive shaft, the diameter is approx. 30 mm |
| D | Universal wheel hub extractor | Commercially available | To press the drive shaft out of the wheel hub |
