Removing and installing left drive shaft (Tiptronic transmission): Notes
WARNING: This page is about a different variant/trim than selected.
The parking brake cable must be disengaged from the parking brake lever in the passenger compartment before the left drive shaft can be removed. Disengaging the parking brake cable includes:
- opening the lid of the oddments tray on the center console and removing the rubber insert and the holder.

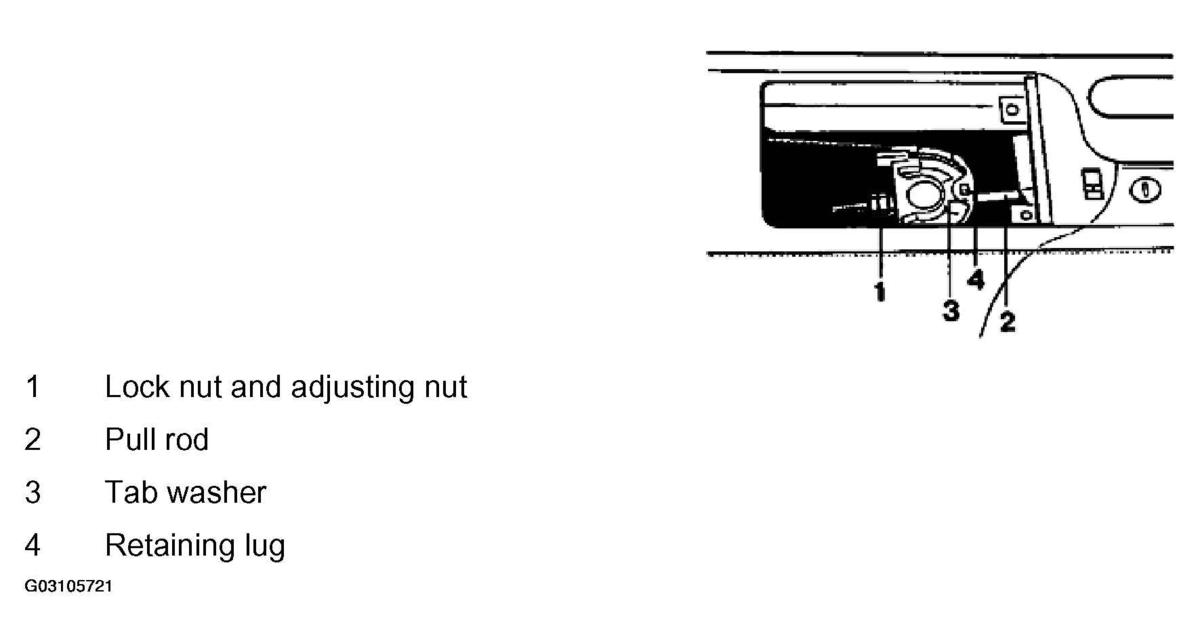

- Disengaging tab washer of the turnbuckle from the retaining lug on the upper and lower sides.
- Disengaging the relevant parking brake cable from the turnbuckle.
