Distinguishing feature of coil springs and dampers

WARNING: This page is about a different variant/trim than selected.

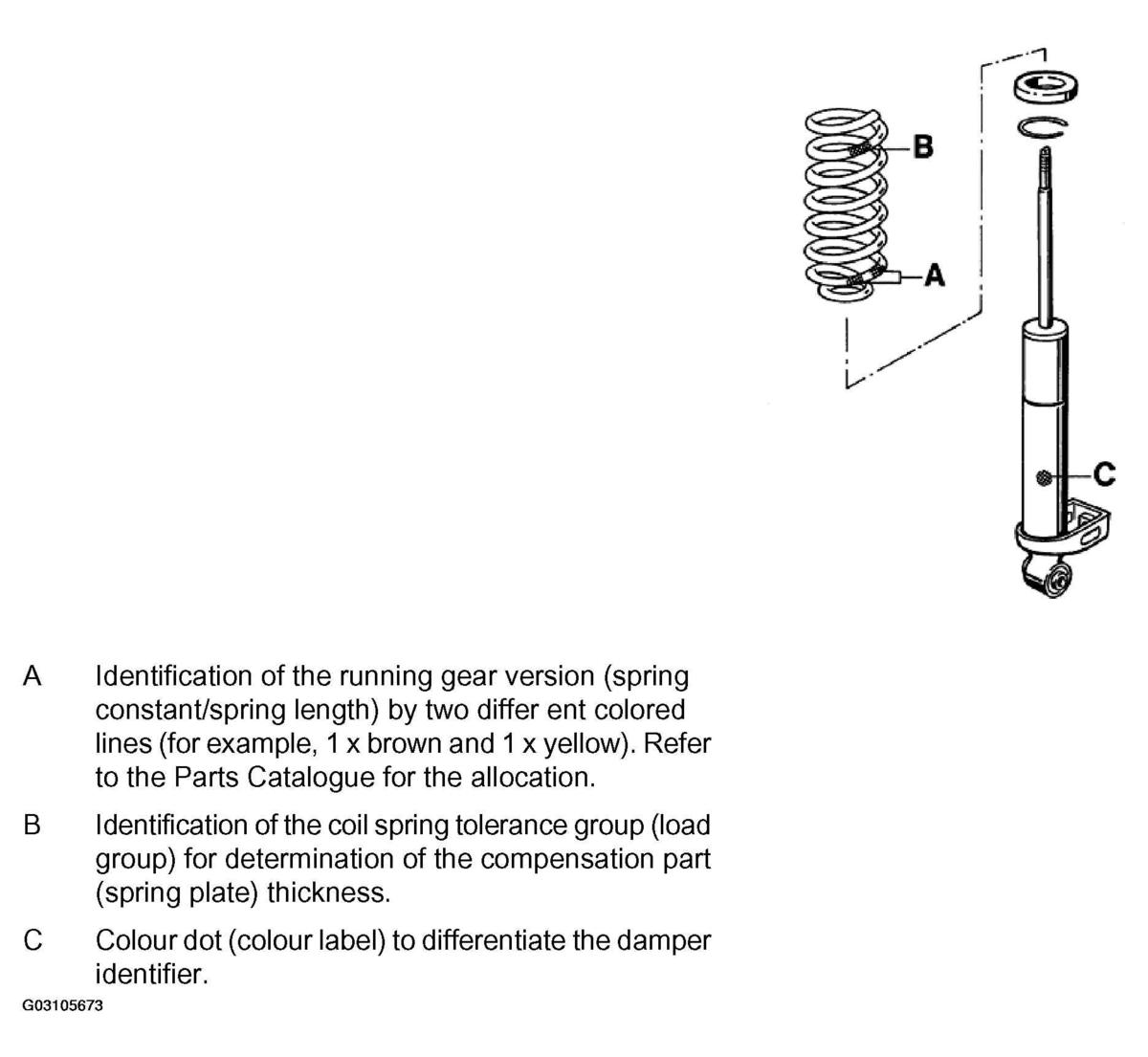

Fig 1: Identifying Distinguishing Features Of Coil Springs And Dampers
G03105673Courtesy of PORSCHE OF NORTH AMERICA, INC.
  1. 1 white line = 0.5 mm thick compensation part.
  2. 1 green line = 4.0 mm thick compensation part.
  3. Brown dot = Standard running gear, RoW/USA
  4. Green dot = Sport-type running gear, RoW
  5. Grey dot = Sport-type running gear, USA
