Installing new sucking jet pump

WARNING: This page is about a different variant/trim than selected.

Install in reverse order.
Install sucking jet pump. Before installing the sucking jet pump, fit (clip on) the retainer -arrow- at the connection -C- . Push the connection -C- on to the angle piece as far as the stop.

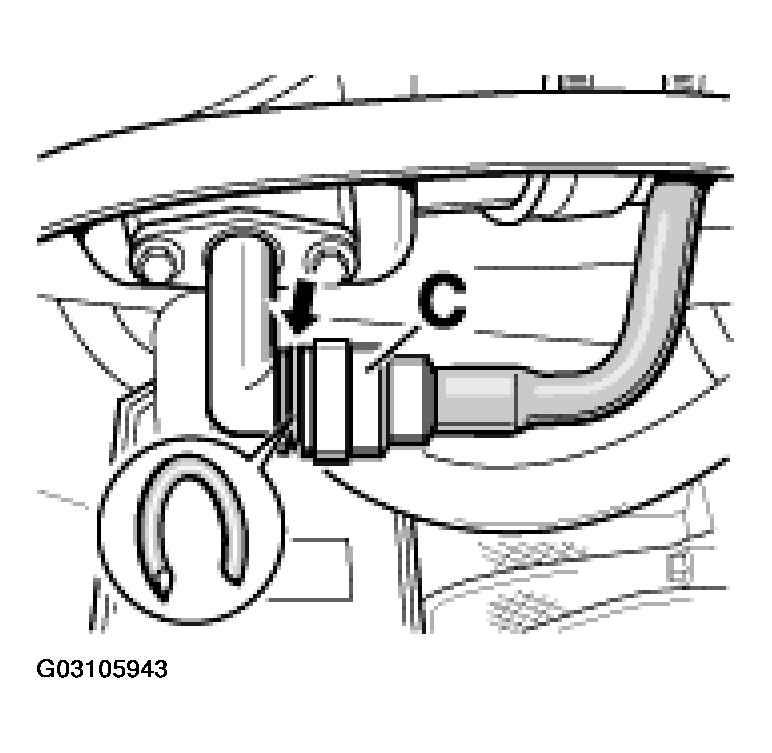

Fig 1: Fitting (Clip On) Retainer At Connection
Courtesy of PORSCHE OF NORTH AMERICA, INC.
NOTE:
- The connection -C- of the sucking jet pump must be pushed completely (as far as the stop) -dashed line- on to the angle piece (the connection flange)!

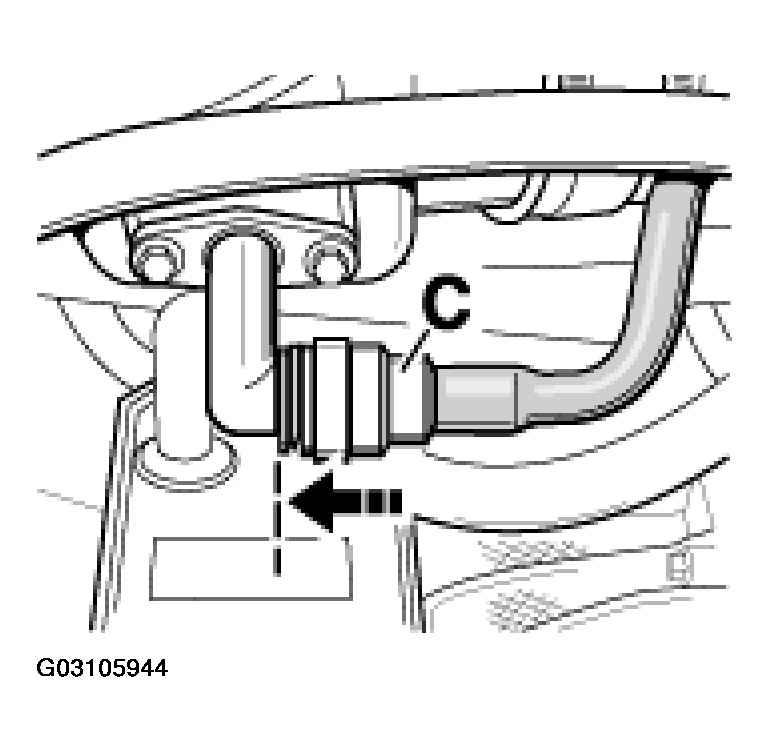

  Fig 2: Pushing Connection Of Sucking Jet On To Angle Piece
  Courtesy of PORSCHE OF NORTH AMERICA, INC.
- As this area is not visible, it must be done by feel!
Carry out the following assembly operations:
- Clip the lead into the holder -2- . Refer to Fig 3 .
- Fit hose -3- . Refer to Fig 3 .
- Push on plug -4- . Refer to Fig 3 .
- Fit the lead -A- for the brake booster and the snap ring -arrow- . Refer to Fig 3 .
- Fit the clamp and fasten with screw (M6) -5-. Refer to Fig 3 .

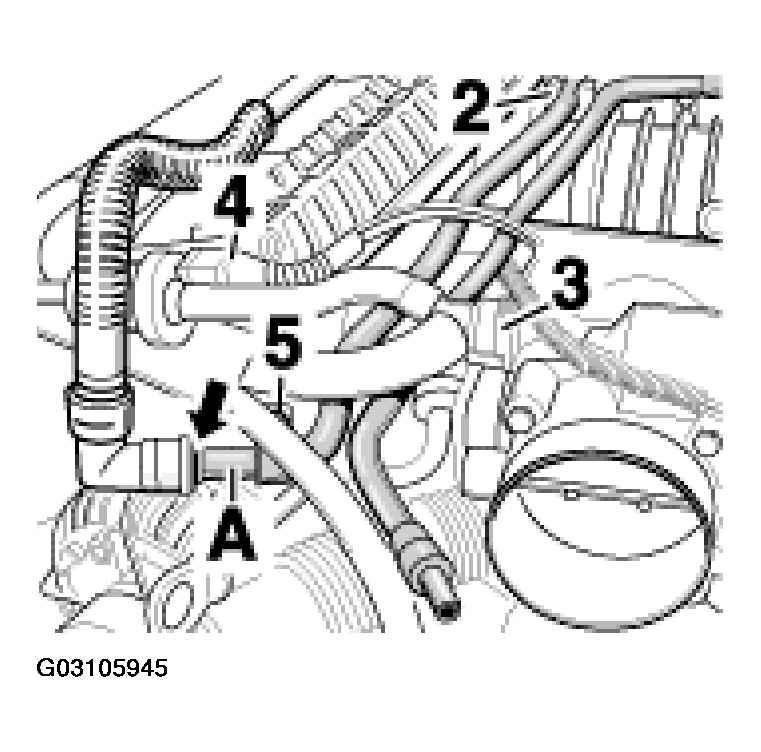

Fig 3: Assembling Components
Courtesy of PORSCHE OF NORTH AMERICA, INC.
Raise engine with the workshop jack and secure the engine carrier on the right and left engine mounts -arrow = left engine mount- with new fastening nuts. Tightening torque 85 N.m (63 ftlb.).

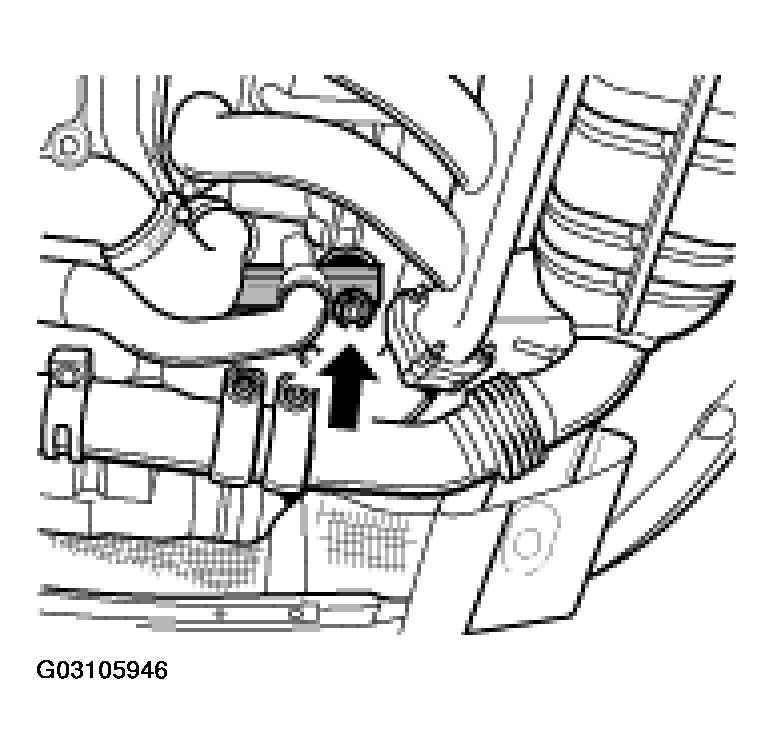

Fig 4: Securing Engine Carrier On Left Engine Mounts With New Fastening Nuts
Courtesy of PORSCHE OF NORTH AMERICA, INC.
Remove the retaining device 9624/1 -E- and fasten the stabilizer on the rear-axle side sections (4 screws).

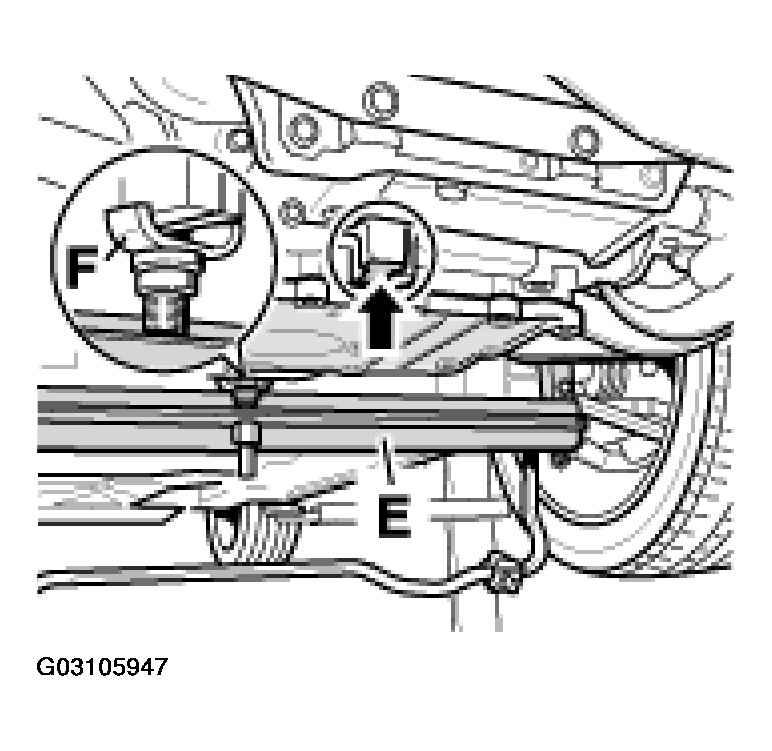

Fig 5: Removing Retaining Device 9624/1
Courtesy of PORSCHE OF NORTH AMERICA, INC.
Clip the electrical leads from the right -arrows- and left of the oxygen sensors on the body (illustration shows right side).

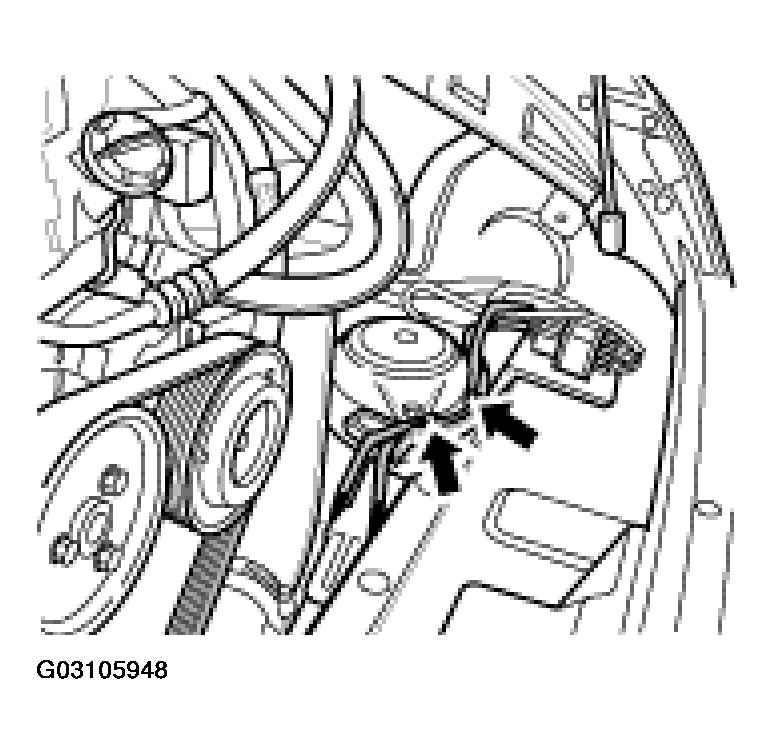

Fig 6: Clipping Oxygen Sensor Electrical Leads On Body
Courtesy of PORSCHE OF NORTH AMERICA, INC.
Install air cleaner assembly.
Start the engine and check the intake system for leaks.
Check function of brake booster.
