1. step: Bleed brakes as usual
WARNING: This page is about a different variant/trim than selected.
CAUTION:
For vehicles with extremely high mileage or for very old vehicles, damage to the brake master cylinder can occur and the primary boots can be damaged!
- Double the number of pumping cycles and use only half of the master brake cylinder stroke!

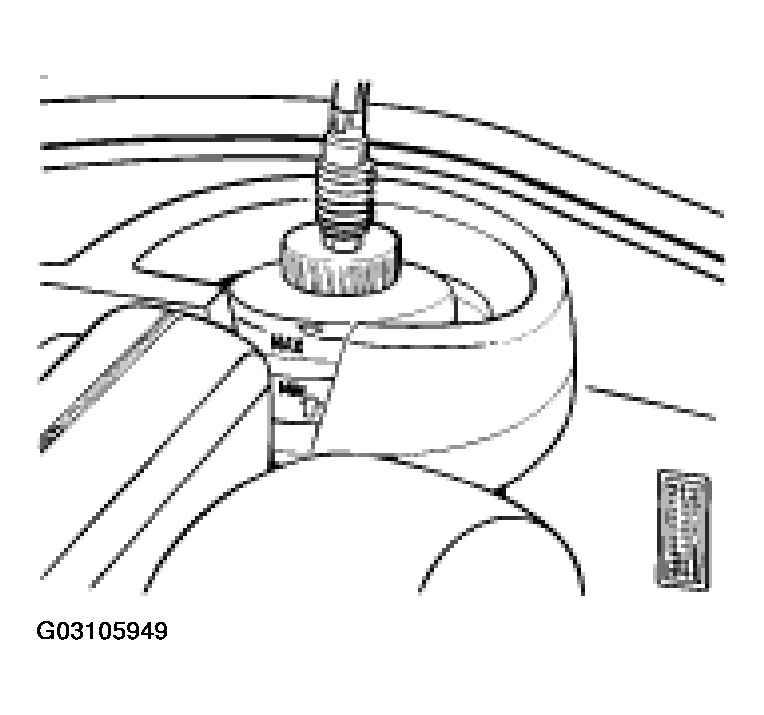

- Fill reservoir to its top edge with new brake fluid.
- Connect a bleeding device to the brake fluid reservoir. Switch on the bleeding device. Bleeding pressure approximately 2.0 bar.
Courtesy of PORSCHE OF NORTH AMERICA, INC.
NOTE:- Bleed the outer bleeder valve first!
- Continue bleeding at the brake calipers in the sequence: Sequence: Rear right / rear left / front left / front right.
- Open each bleeder valve until clear, bubble-free brake fluid emerges.
- Use a transparent hose and a collecting bottle to check the escaping brake fluid accurately for cleanliness, lack of air bubbles and to determine the brake fluid used.
After installing a new brake master cylinder and/or a new hydraulic unit, do the following while bleeding:
- Open the right rear bleeder valves, then fully depress the brake pedal several times.
- Hold for 2 - 3 seconds after each depression, then release slowly.
- Repeat this procedure in the sequence rear left / front right / front left. This will remove all air bubbles (from the primary circuit).
NOTE: Also carry out this procedure if the brake hydraulics was largely empty or if after bleeding residual air can be detected by excessive brake-pedal travel! - Continue bleeding at front on right with running booster pump (Step 2).
