Removing and installing pressure sensor: Removal

  1. Undo hexagon-head bolt and pull pressure sensor out of the pressure pipe.

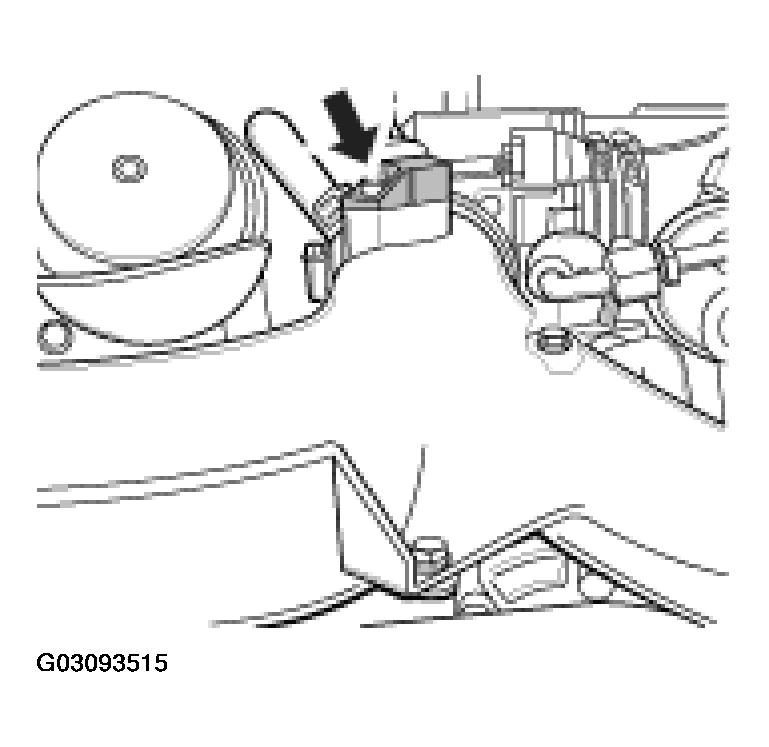

    Fig 1: Removing Pressure Sensor From Pressure Pipe
    G03093515Courtesy of PORSCHE OF NORTH AMERICA, INC.
  2. Press the button on the plug and pull off the plug at the same time.

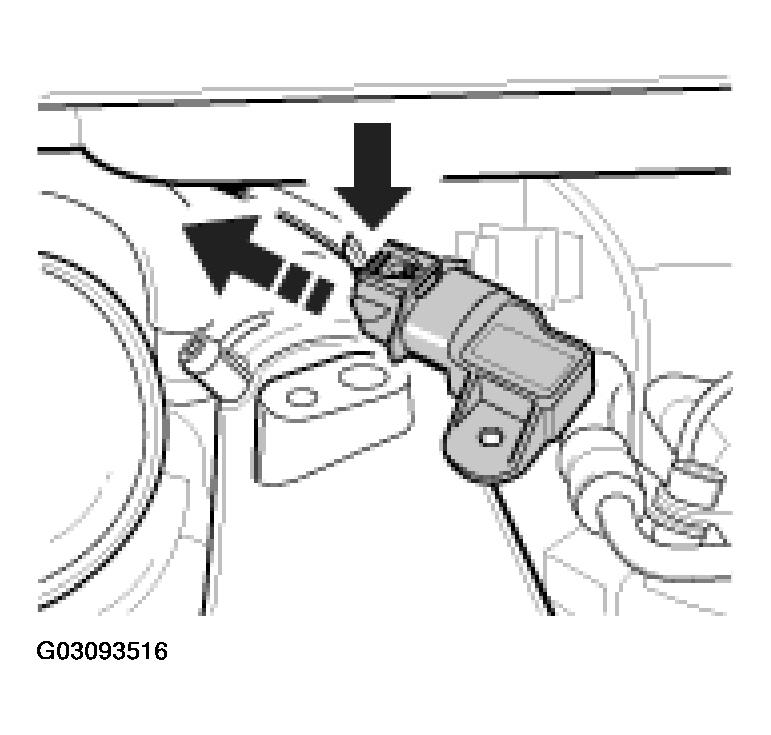

    Fig 2: Pulling Off Pressure Sensor Plug
    G03093516Courtesy of PORSCHE OF NORTH AMERICA, INC.
