Repair of rear wiring harness: Notes

NOTE:
  • The combination wires for ABS and BVA are integrated in the wiring harness. In the event of damage, the integrated wires can be removed and replaced by repair wires. The disconnection point is the plug connection X 2/4 passenger compartment/rear end (white) or connection points. The plug connection is situated behind the driver's seat on the left beneath the belt reel.
  • After repair, the following function tests must be performed:
  • ABS: Test with the Porsche System Tester 2.
  • BVA: The indicator light must go out with the engine running and the brake linings intact.
  • Plug connection X 2/4, passenger compartment/rear end: Install preassembled contacts or join wires at connection points.

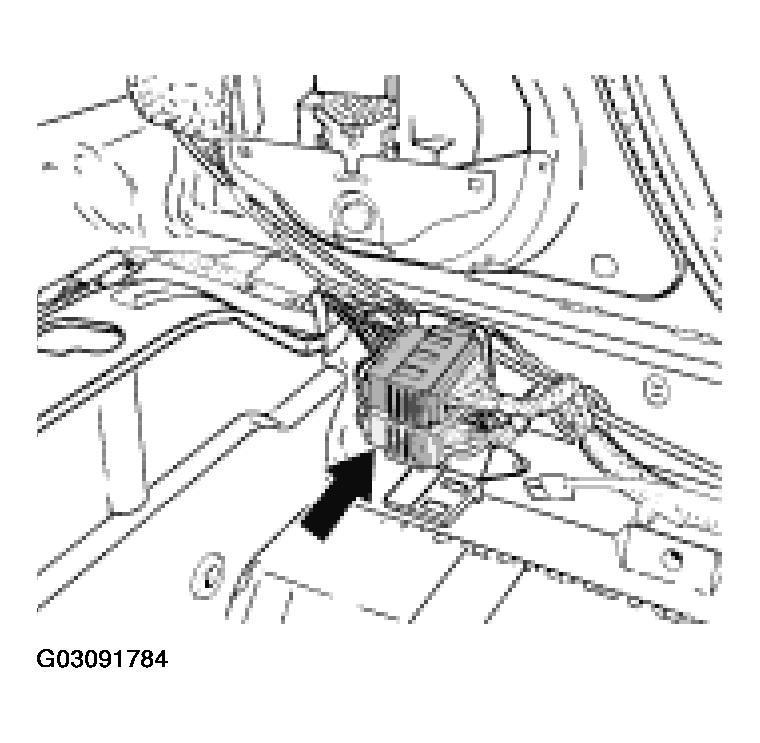

    Fig 1: Identifying Plug Connection X 2/4, Passenger Compartment/Rear End
    G03091784Courtesy of PORSCHE OF NORTH AMERICA, INC.
