Installing fusible element in the current distributor

NOTE:
  • The following spare parts must be replaced.
    1. Hexagon nut M 8, 1 piece
    2. Repair kit - replacement fusible element
  1. Insert new fusible element -1-, using new washers -2- and new hexagon nuts -3- M 5. Tightening torque: 4 N.m (3 ftlb.).

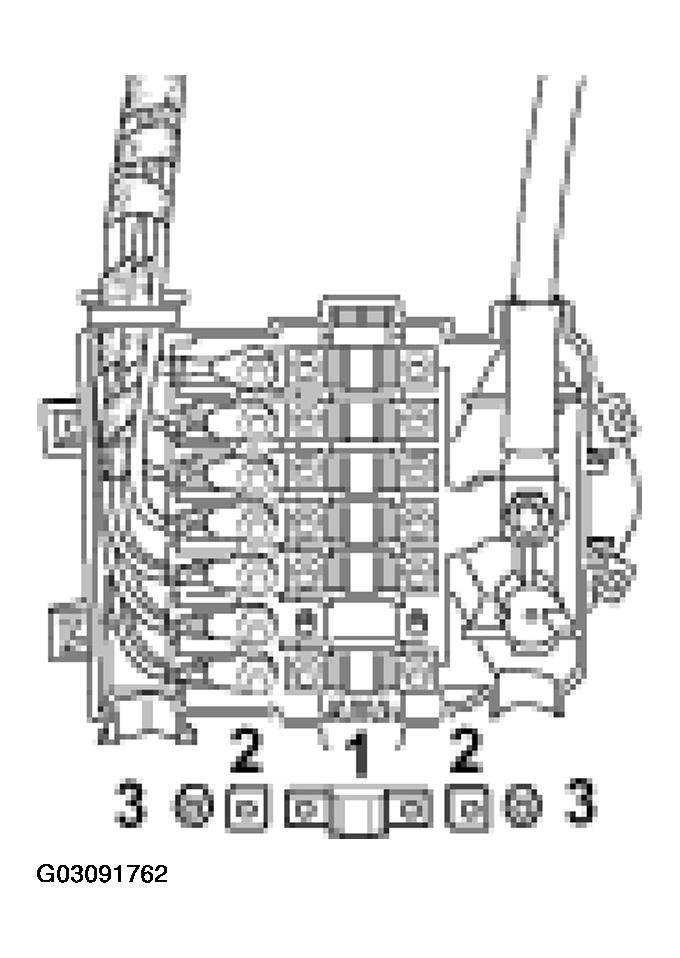

    Fig 1: Inserting Fusible Element And Washers
    G03091762Courtesy of PORSCHE OF NORTH AMERICA, INC.
  2. Position and engage the blue after-sales service cover -A-  .

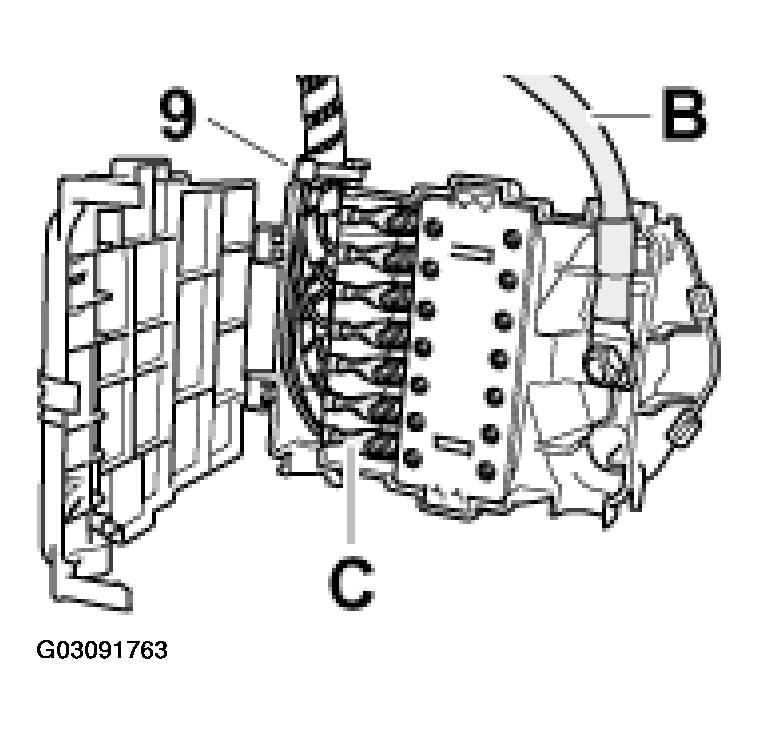

    Fig 2: Installing Blue After-Sales Service Cover
    G03091763Courtesy of PORSCHE OF NORTH AMERICA, INC.
  3. Close the current distributor cover until it engages -arrow-.
  4. Affix the blue service label.
