Installing optical contacts on plug side

  1. Push optical contact -B-  into the plug until it engages audibly.

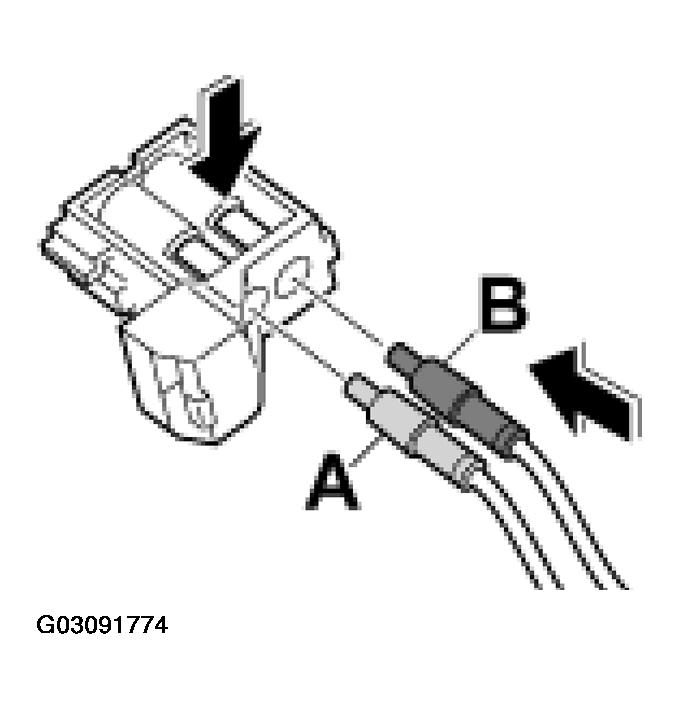

    Fig 1: Connecting Optical Contact Into Plug
    G03091774Courtesy of PORSCHE OF NORTH AMERICA, INC.
    • -A-  Optical contact, grey
    • -B-  Optical contact, black
  2. Close the secondary lock -arrow-  and check for proper seating of the optical contacts.

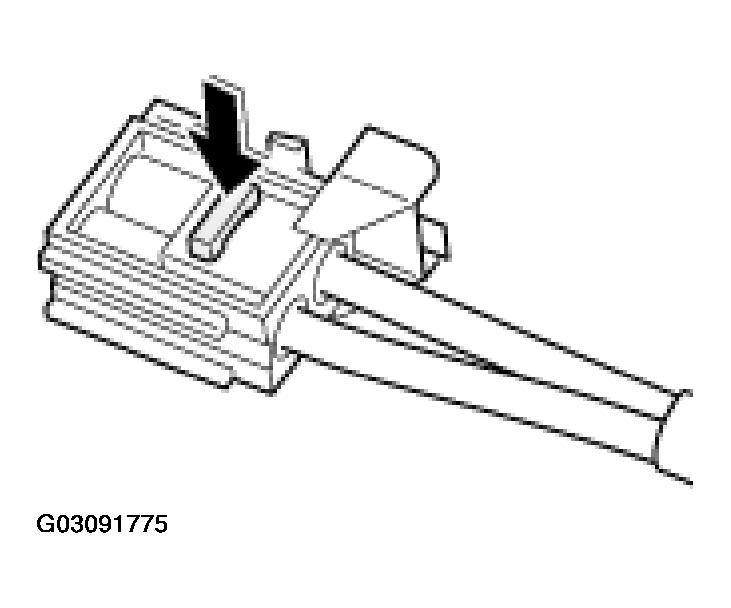

    Fig 2: Checking For Proper Seating Of Optical Contacts
    G03091775Courtesy of PORSCHE OF NORTH AMERICA, INC.
