Optical waveguide modules

At least one transmitter diode and one receiver diode is installed in all MOST control modules. A transmitter diode of an MOST device is connected to the respeective receiver diode of a second MOST device. A circuit is created, in which the light signal in every control module is refreshed (the light signal is converted to an electrical signal in every control module).

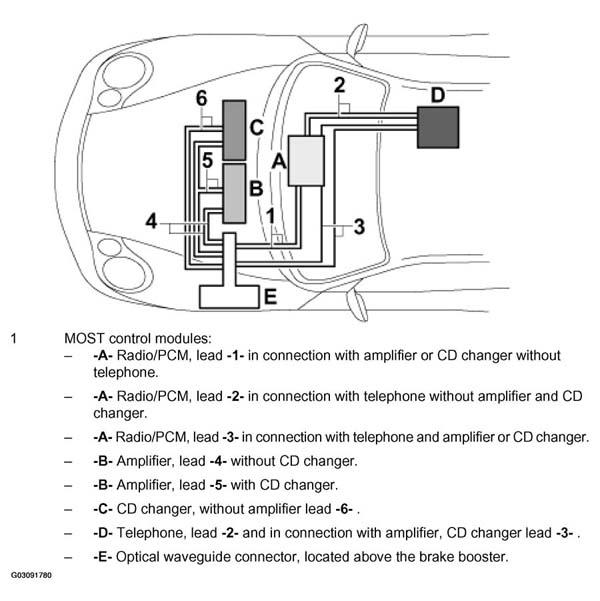

The graphic below shows the wiring of the individual MOST control modules which varies according to the particular equipment.

Fig 1: Identifying Optical Waveguide Circuit
G03091780Courtesy of PORSCHE OF NORTH AMERICA, INC.
