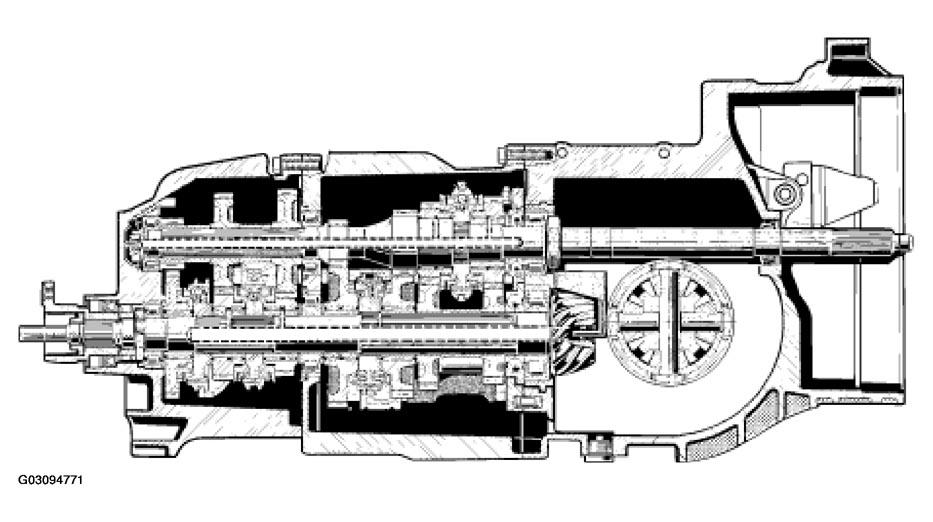

6-speed manual transmission G 96.50
TYPE AND MODEL YEAR CHART - TRANSMISSION
| Type | Code letter | Equipment | Installed in | Model year |
|---|---|---|---|---|
| G 96.50 | - | 6-speed | 911 Turbo (996) | 2001 |
GENERAL SPECIFICATION - MANUAL TRANSMISSION G 96.50
| General data | Manual transmission G 96.50 |
|---|---|
| Transmission ratios | Z1 :Z2=Z2:Z1 |
| 1st gear | 11 :42 = 3.82 |
| 2nd gear | 21 :43 = 2.05 |
| 3rd gear | 27:38 = 1.41 |
| 4th gear | 34:38 = 1.12 |
| 5th gear | 37 : 34 = 0.92 |
| 6th gear | 40 : 30 = 0.75 |
| General data | Manual transmission G 96.50 |
| Transmission ratios | Z1 :Z2 = Z2:Z1 |
| Reverse gear | 14:40 = 2.86 |
| Final drive | Hypoid bevel gear drive with 10 mm offset |
| Transmission ratio, final drive | 9 : 31 = 3.44 |
| Filling capacity for new filling | 3.8 I |
| Change quantity | 3.0 I |
