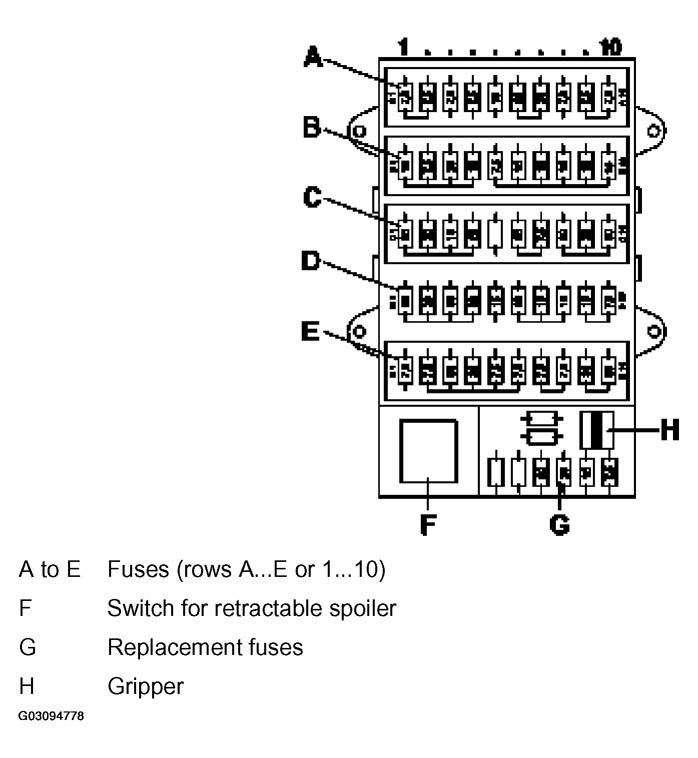

Fuse assignments
A to E: Fuses (rows A...Eor 1...10)
F: Switch for retractable spoiler
G: Replacement fuses
H:Gripper
FUSE ASSIGNMENTS
| No. | Load | Amperage rating |
|---|---|---|
| Row A | ||
| 1 | High beam headlight, right | 15 |
| 2 | High beam headlight, left | 15 |
| 3 | Side lights, right | 7.5 |
| 4 | Side lights, left | 7.5 |
| 5 | Number plate light, instrument lighting | 15 |
| 6 | Seat heating | 25 |
| 7 | Fog lights, rear fog light | 25 |
| 8 | Number plate light for Canada | 7.5 |
| 9 | Dipped beam headlight, right | 15 |
| 10 | Dipped beam headlight, left | 15 |
| Row B | ||
| 1 | Instrument cluster, Tiptronic, PSM/ASR button, diagnosis, convertible-top drive | 15 |
| 2 | Hazard warning light | 15 |
| 3 | Horn | 25 |
| 4 | Engine-compartment Ian | 15 |
| 5 | Reversing lights, convertible-top drive control module, mirror and mirror memory | 7.5 |
| 6 | Direction indicator light, power window touch-control enabling | 15 |
| 7 | Brake lights, cruise control | 15 |
| 8 | Control modules for central locking system, alarm system, DME, Tiptronic | 15 |
| 9 | Control module for ABS/ASR/PSM, Traction Control | 15 |
| 10 | Instrument cluster, diagnosis, headlight beam adjustment | 15 |
| Row C | ||
| 1 | DME relay | 25 |
| 2 | Ignition relay, oxygen sensors | 30 |
| 3 | Control module for central locking system, alarm system, power windows | 15 |
| 4 | Fuel pump relay | 25 |
| 5 | Engine-compartment fen (optional) | 5 |
| 6 | Windshield wipers | 25 |
| 7 | Terminal X, control wiring | 5 |
| 8 | Radiator fan 2 | 40 |
| 9 | Headlight washer | 25 |
| 10 | Radiator fan 1 | 40 |
NOTE:
If the power windows should fail, check fuse C3 (15 A) in addition to fuse D1 (30 A).
CHECK FUSE REFERENCE DATA
| No. | Load | Amperage rating |
|---|---|---|
| Row D | ||
| 1 | Power windows | 30 |
| 2 | Door mirror, rear window heater | 30 |
| 3 | Convertible-top drive, sliding roof | 30 |
| 4 | Rear power windows, cabriolet | 30 |
| 5 | Cigarette lighter | 15 |
| 6 | Heating relay | 30 |
| 7 | Retractable spoiler | 15 |
| 8 | Radio | 15 |
| 9 | Sound package | 15 |
| 10 | Slot for additional equipment - Caution - max. 5A! | 7,5 |
| Row E | ||
| 1 | Terminal 86 S, instrument cluster, radio, daytime driving light, control modules for central locking, alarm system, information system, roll-over sensor | 7,5 |
| 2 | Control module for seat memory | 7,5 |
| 3 | Control module memory for seat adjustment, left | 30 |
| 4 | Control module memory for seat adjustment, right | 30 |
| 5 | Information system | 7,5 |
| 6 | Terminal 30, telephone, navigation control module | 7,5 |
| 7 | Air conditioning | 7,5 |
| 8 | Terminal 15, telephone, information system | 7,5 |
| g | PSM | 25 |
| 10 | PSM | 15 |
