Refrigerant circuit

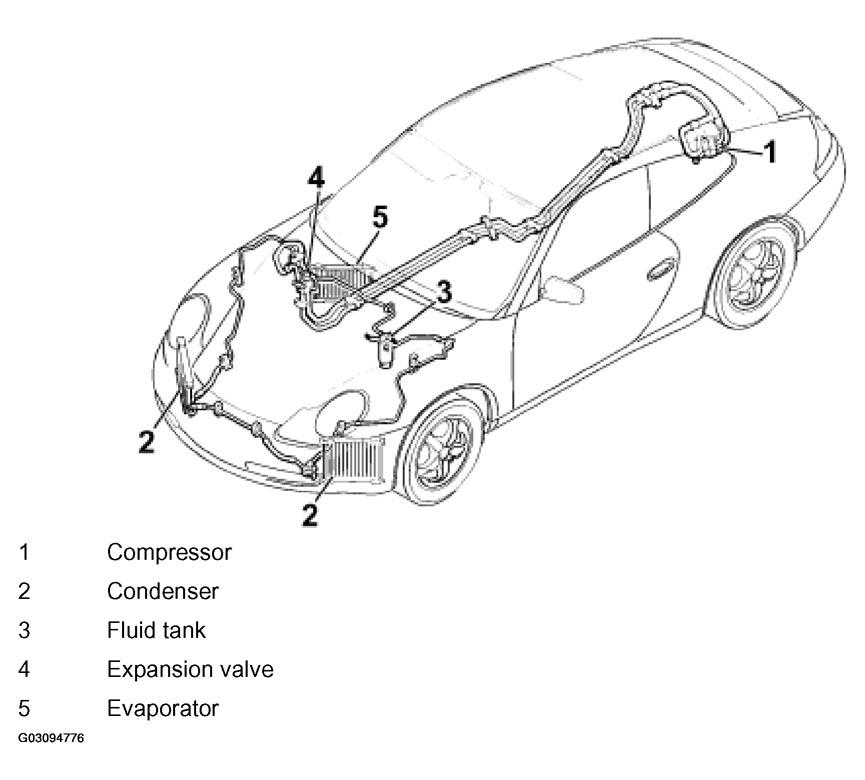

Fig 1: Identifying Refrigerant Circuit
G03094776Courtesy of PORSCHE OF NORTH AMERICA, INC.
  1. Compressor
  2. Condenser
  3. Fluid tank
  4. Expansion valve
  5. Evaporator
