Component arrangement, Airbag System B05

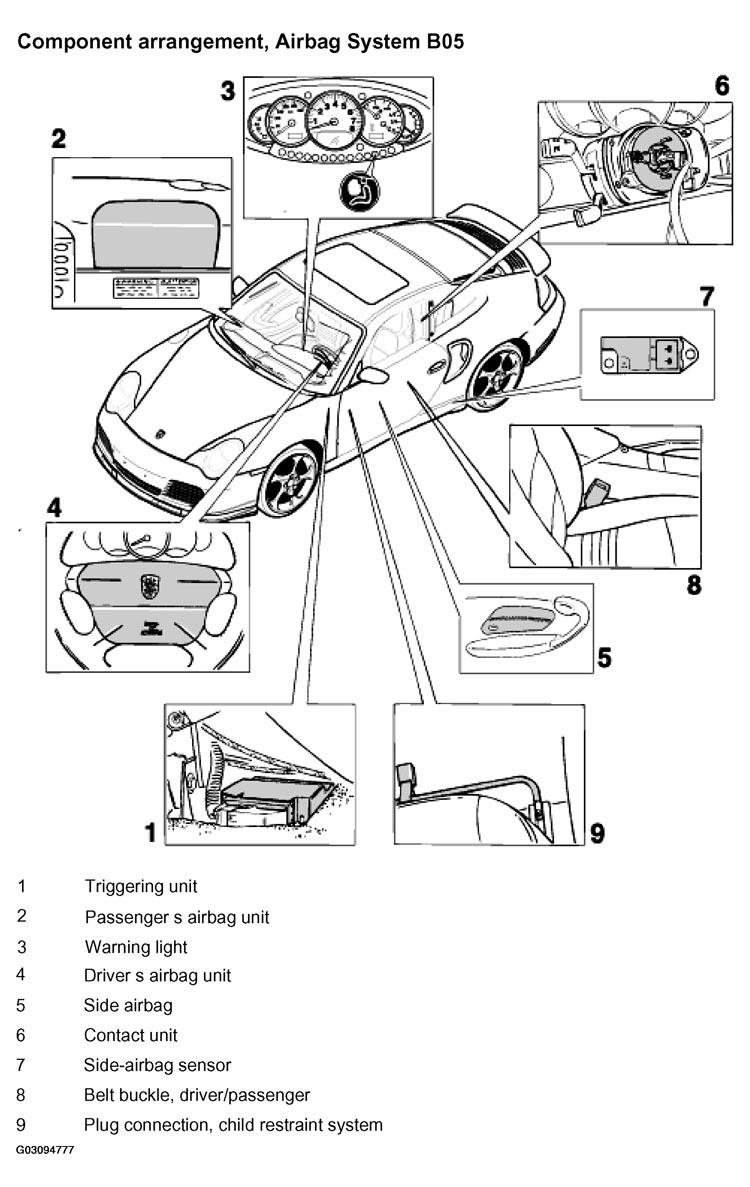

Fig 1: Identifying Component Arrangement - Airbag System B05

Courtesy of PORSCHE OF NORTH AMERICA, INC.

1. Triggering unit
2. Passengers airbag unit
3. Warning light
4. Drivers airbag unit
5. Side airbag
6. Contact unit
7. Side-airbag sensor
8. Belt buckle, driver/passenger
9. Plug connection, child restraint system
