Removing and installing brake master cylinder: Removal

NOTE: The booster pump -1- remains fitted (installed) during removal and installation of the brake master cylinder.

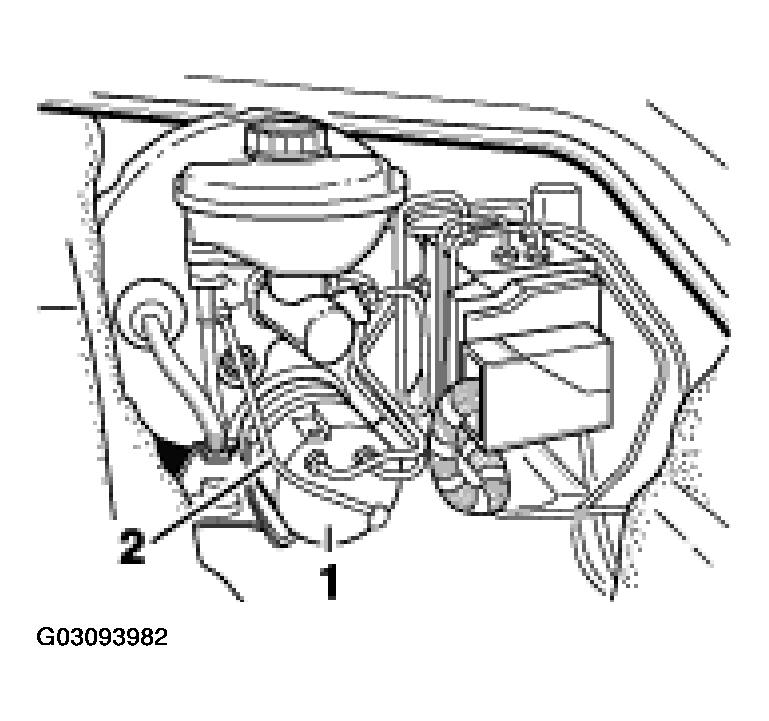

Fig 1: Identifying Booster Pump

Courtesy of PORSCHE OF NORTH AMERICA, INC.

1. Remove cover -A-  from the hydraulic unit/brake unit.

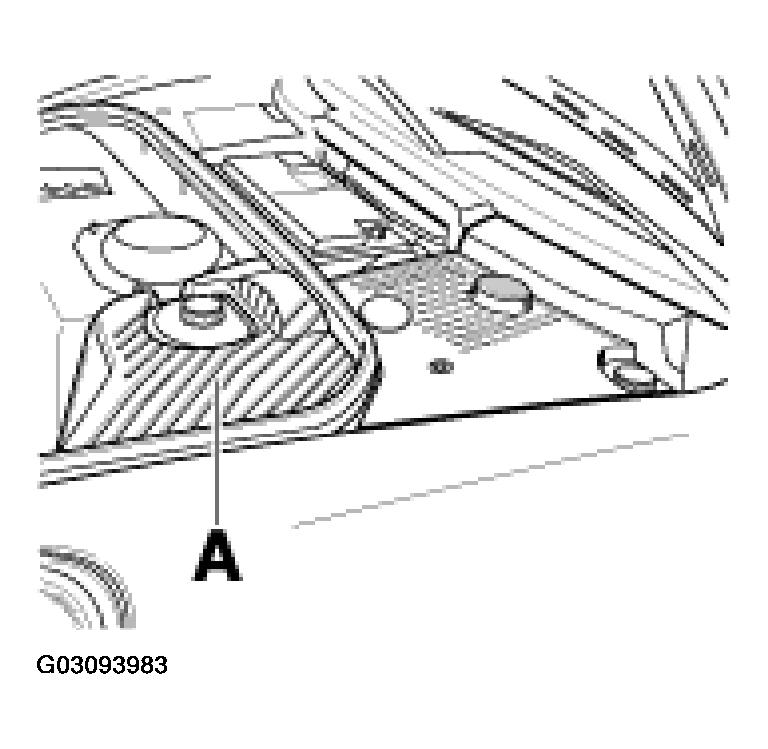

   Fig 2: Removing Cover From Hydraulic Unit/Brake Unit

   Courtesy of PORSCHE OF NORTH AMERICA, INC.
2. Remove brake fluid from reservoir using suction.
3. Disconnect the electrical line (plug) on the reservoir.
4. Remove suction line of booster pump -2-  .

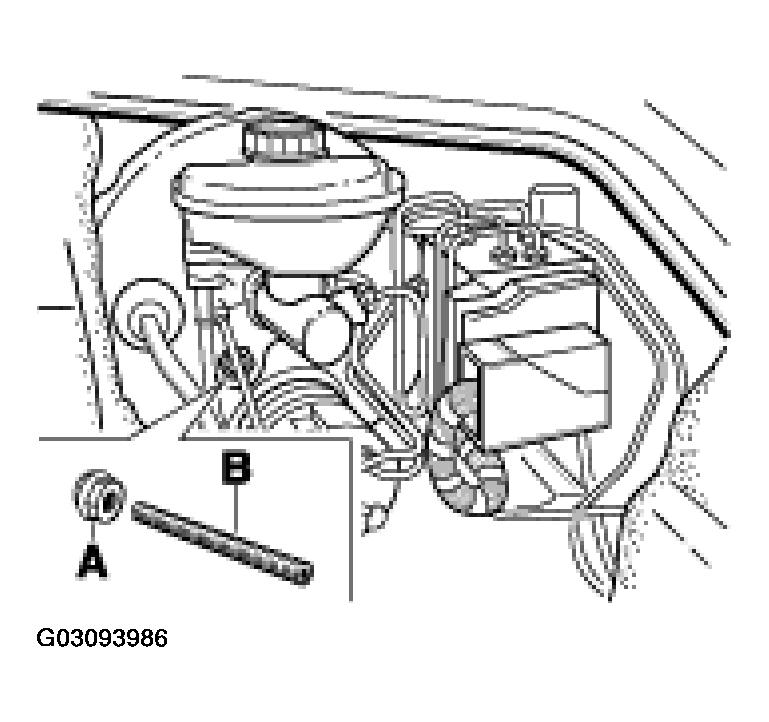

   Fig 3: Removing Suction Line Of Booster Pump

   Courtesy of PORSCHE OF NORTH AMERICA, INC.
5. Undo the brake lines on the brake master cylinder. Close the brake lines and the brake line connections with suitable plugs.
   NOTE:

   • -A- = Brake master cylinder fastening nuts
   • -B- = Brake booster fastening screws (Torx)
     Fig 4: Identifying Brake Master Cylinder Fastening Nuts And Brake Booster Fastening Screws (Torx)

     Courtesy of PORSCHE OF NORTH AMERICA, INC.
6. Undo the fastening nuts -A-  of the brake master cylinder. Pull out brake master cylinder.
   Fig 5: Identifying Brake Master Cylinder Fastening Nuts And Brake Booster Fastening Screws (Torx)

   Courtesy of PORSCHE OF NORTH AMERICA, INC.
