Imprinting new vehicle identification number

1. Spacer for replacing the vehicle identification number

   The spacer for applying the vehicle identification number is in the front, right firewall. Two sections are intended for use.

   Section 1 -A-  is the standard spacer. Refer to Fig 1 .

   Section 2 -B-  is the spare spacer for a corrected vehicle identification number.

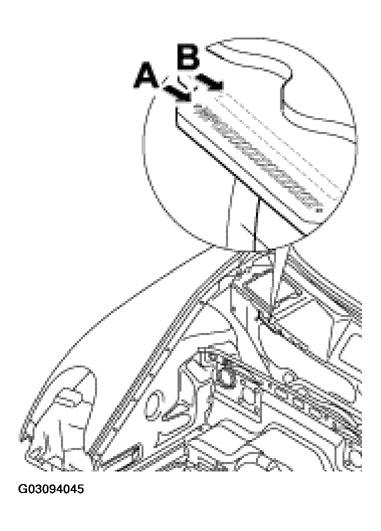

   Fig 1: Locating Vehicle Identification Number Plate

   Courtesy of PORSCHE OF NORTH AMERICA, INC.
2. Imprinting new vehicle identification number

1. Stamp the vehicle identification number to be replaced into the spacer with an 8 mm number embossing tool and the Porsche star.
2. Mask imprinted vehicle identification number.
3. Apply exterior paintwork.
4. Remove the vehicle identification number mark.
5. Paint repair area with clear lacquer.
