Seam seals: Accessories

NOTE:

Due to modifications to the spare part range, in the case of repair work accessories must be sealed before assembly (painting) according to the following illustrations.
The sealing material000 043 204 38 can be applied directly to the accessories coated with KTL paint (cathodic dipbath coating).
The seam seal can be painted over when it has reached approx. 70 % hardness (approx. 4-5 h at 20 °C, 50 % relative air humidity). (Higher air humidity or dampening with water accelerates the hardening process).
The hardening can be checked with a nail test. Press a finger nail gently into the hardened sealing mass; if this causes no damage to the sealing mass surface, the seam seal can be painted.

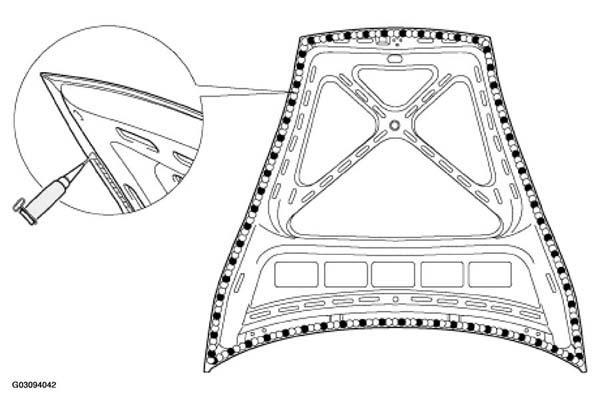

Fig 1: Locating Front Lid Seam Seal

Courtesy of PORSCHE OF NORTH AMERICA, INC.

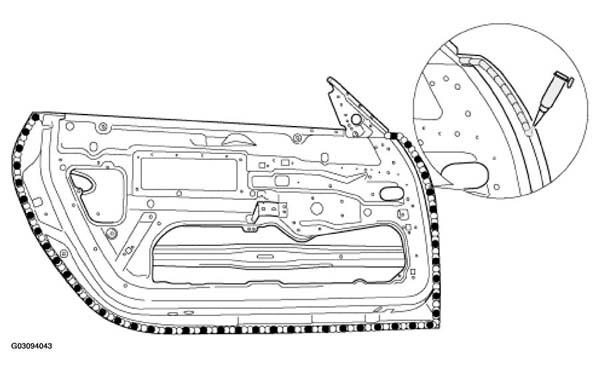

Fig 2: Locating Door Seam Seal

Courtesy of PORSCHE OF NORTH AMERICA, INC.

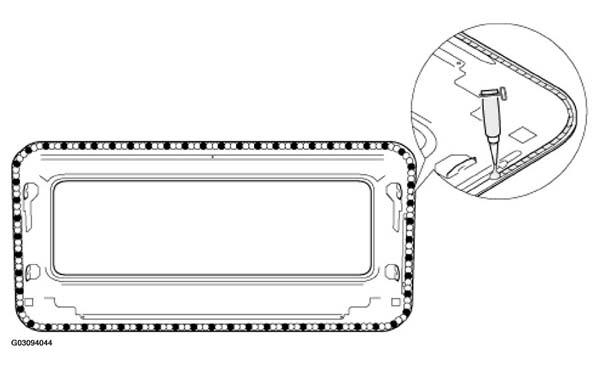

Fig 3: Locating Sliding Roof Panel Seam Seal

Courtesy of PORSCHE OF NORTH AMERICA, INC.
