Bottom of lower side member and floor

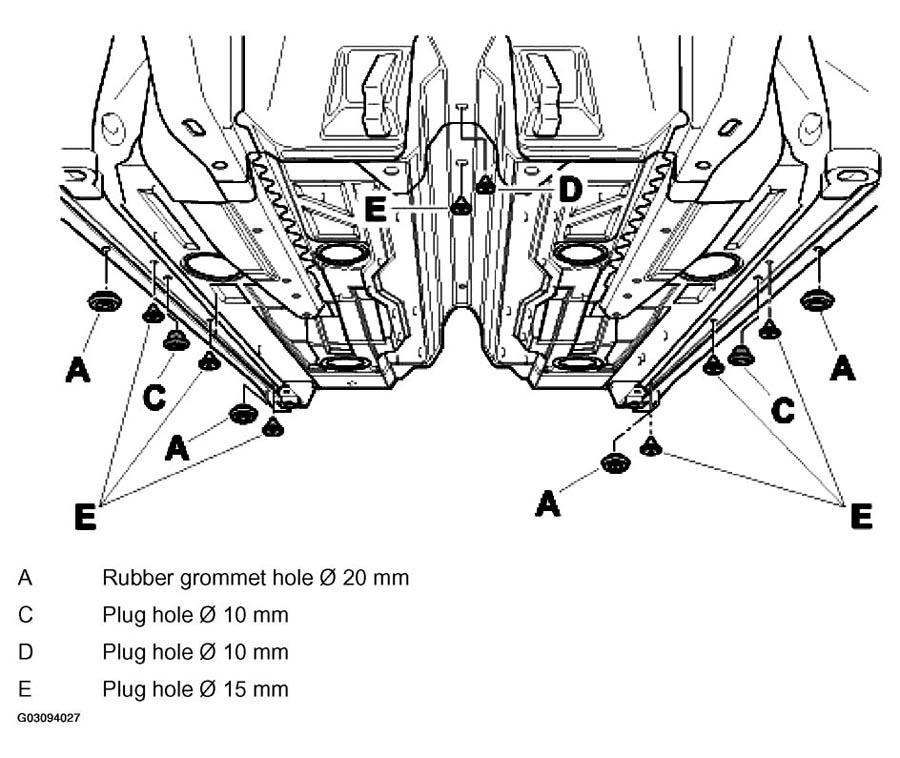

Fig 1: Locating Body Plug (Bottom Of Lower Side Member And Floor)
G03094027Courtesy of PORSCHE OF NORTH AMERICA, INC.
