Gap dimensions, body centre

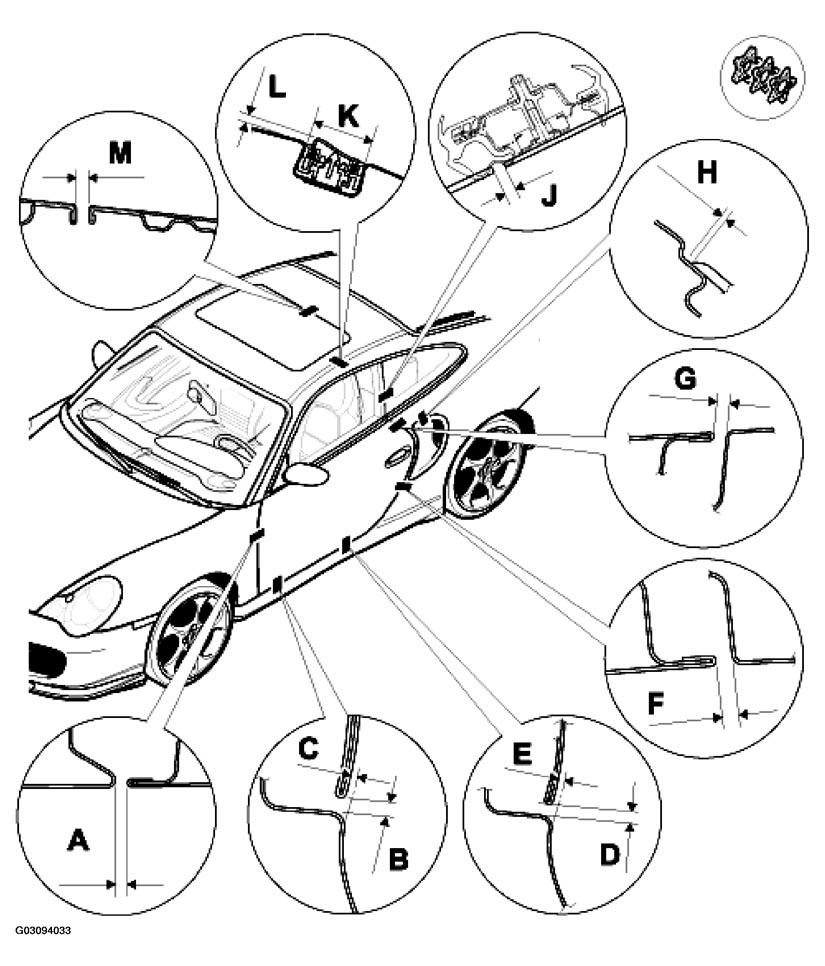

Courtesy of PORSCHE OF NORTH AMERICA, INC. BODY CENTRE GAP DIMENSION SPECIFICATIONS
| Designation |
Dimension |
Note |
| Door to front wing |
-A- |
4+2.5
mm |
Door only lowered (max. 1 mm) |
| Door to outer side section |
-B- |
4-0.5
mm |
|
| -C- |
1.5 mm |
Doors only lowered |
| -D- |
3.5-0.5
mm |
|
| -E- |
2 mm |
Doors only lowered |
| -F- |
4-0.5
mm |
Doors only raised |
| -G- |
4-0.5
mm |
Doors only raised (max. 1 mm) |
| Air inlet to outer side section |
-H- |
1.6 mm |
Determine regularly all the way round |
| Door window to rear side window |
-J- |
7 +/- 1 mm |
|
| Side section to outer roof panel |
-K- |
25.3 +/- 1 mm |
|
| Roof joint strip to outer roof panel |
-L- |
3.2 +/- 1 mm |
|
| Sliding roof panel to outer roof panel |
-M- |
5.5 +/- 0.5 mm |
All the way round, sliding roof panel only lowered at front, only raised at rear (max. 1 mm) |
