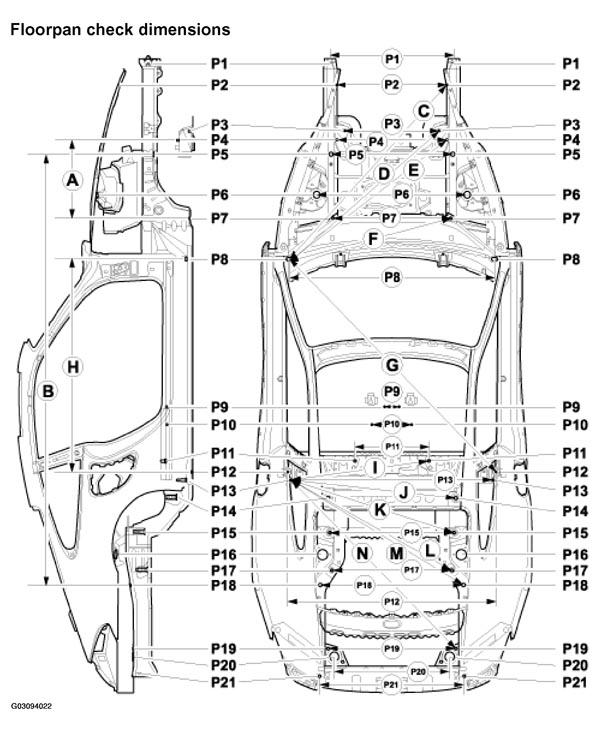

Floorpan check dimensions
NOTE:
All dimensions are measured to the middle of the hole or screwed point. The dimensions are measured directly and, therefore, are oblique dimensions. Dimensions in brackets are measured horizontally.
FLOORPAN CHECK DIMENSIONS SPECIFICATIONS (1 OF 3)
| Dimension | Measuring points | Designation | Dimension in mm |
|---|---|---|---|
| P1 | P1 - P1 | Impact absorber / pipe front | 800+/-2 |
| P2 | P2 - P2 | Bearer side spare-wheel well | 712+/-2 |
| P3 | P3 - P3 | Front axle front, front, low | 610+/-1 |
| P4 | P4 - P4 | Front axle front, rear, high | 731,2+/-1 |
| P5 | P5 - P5 | Rational location hole, side member front | 800+/-1 |
| P6 | P6 - P6 | Spring strut bracket, front | 985+/-2 |
| P7 | P7 - P7 | Front axle front, rear | 773+/-1 |
| P8 | P8 - P8 | Front jacking point for hoist or car jack | 1330+/-2 |
| P9 | P9 - P9 | Transmission support, front | 256+/-2 |
| P10 | P10 - P10 | Transmission support, centre | 270+/-2 |
| P11 | P11 - P11 | Transmission support, rear | 400+/-2 |
| P12 | P12 - P12 | Rear jacking point for hoist or car jack | 1370+/-2 |
| P13 | P13 - P13 | Rear diagonal brace | 824+/-3 |
| P14 | P14 - P14 | Rear axle, front | 836+/-2 |
| P15 | P15 - P15 | Rear axle, centre | 821+/-2 |
| P16 | P16 - P16 | Spring strut bracket, rear | 915+/-2 |
| P17 | P17 - P17 | Rear axle, rear | 792+/-2 |
FLOORPAN CHECK DIMENSIONS SPECIFICATIONS (2 OF 3)
| Dimension | Measuring points | Designation | Dimension in mm |
|---|---|---|---|
| P18 | P18 - P18 | Rational location hole, side member rear | 945+/-1 |
| P19 | P19 - P19 | Engine mount location hole outside | 889,2 |
| P20 | P20 - P20 | Engine mount | 780+/-2 |
| P21 | P21 - P21 | Impact absorber / pipe rear | 960+/-2 |
| A | P4 - P7 | In vehicle's longitudinal direction | 507+/-2 |
| B | P5 - P18 | In vehicle's longitudinal direction | 2795+/-1 |
| C | P8 - P2 | Vehicle diagonal dimension | 1525+/-2 |
| D | P8 - P3 | Vehicle diagonal dimension | 1279+/-2 |
| E | P8 - P4 | Vehicle diagonal dimension | 1279+/-2 (1283+/-2) |
| F | P8 - P7 | Vehicle diagonal dimension | 1084+/-2 |
| G | P8 - P12 | Vehicle diagonal dimension | 1929+/-2 |
| H | P8 - P12 | In vehicle's longitudinal direction | 1350+/-2 |
| I | P13 - P11 | Vehicle diagonal dimension | 875+/-3 (863+/-3) |
| J | P13 - P14 | Vehicle diagonal dimension | 1087+/-3 (1085+/-3) |
| K | P13 - P15 | Vehicle diagonal dimension | 1159+/-3 (1125+/-3) |
| L | P13 - P17 | Vehicle diagonal dimension | 1237+/-3 (1209+/-3) |
| M | P13 - P18 | Vehicle diagonal dimension | 1349+/-3 (1323+/-3) |
| N | P13 - P19 | Vehicle diagonal dimension | 1629+/-3 |
FLOORPAN CHECK DIMENSIONS SPECIFICATIONS (3 OF 3)
| Measuring point | Designation |
|---|---|
| P1 | Screwed point (M8 thread) |
| P2 | Bearer side spare-wheel well screwed point (M8 thread) |
| P3 | FA, front screwed point low (thread M12 x 1.5) |
| P4 | FA, front screwed point high (thread M14 x 1.5) |
| P5 | Rational location hole, side member front |
| P6 | Spring strut bracket, front |
| P7 | FA, rear screwed point (thread M14 x 1.5) |
| P8 | Hoist/car jack front location hole |
| P9 | Transmission support, front screwed point (thread M10) |
| P10 | Transmission support, centre screwed point (thread M10) |
| P11 | Transmission support, rear screwed point (thread M 12 x 1.5) |
| P12 | Hoist/car jack rear location hole |
| P13 | Diagonal brace front screwed point (thread M10) |
| P14 | RA front screwed point (thread M12 x 1.5) |
| P15 | RA centre screwed point (thread M12 x 1.5) |
| P16 | Spring strut bracket, rear |
| P17 | RA rear screwed point (thread M12 x 1.5) |
| P18 | Rational location hole, side member rear |
| P19 | Engine mount location hole outside |
| P20 | Engine mount screwed point |
| P21 | Impact absorber / pipe rear screwed point (thread M8) |
