Removing front spoiler

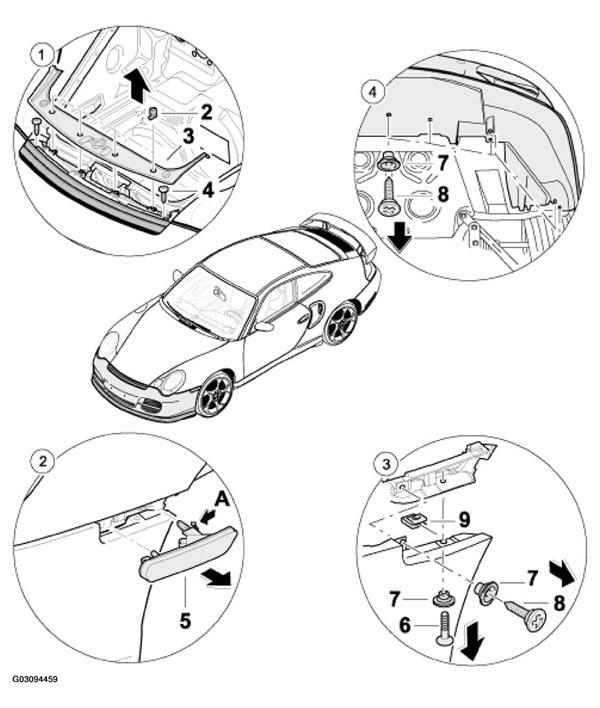

FRONT SPOILER - GT2 REMOVAL PROCEDURE AND INSTRUCTIONS
| No. | Procedure | Instructions |
|---|---|---|
| Remove wheel housing liner | Refer to REMOVING AND INSTALLING WHEEL HOUSING LINERS, FRONT | |
| 1 | Remove cover. | Turn hexagon cap nut -2-4-1- |
| 2 | Remove direction indicator light. | Press in spring clip of direction indicator light -arrow A-5- |
| 3 | Undo front spoiler at the sides. | On the front spoiler, undo the fastening screws -6-7- |
| 4 | Undo front spoiler on the underbody. | Undo fastening screws -8-1- |
