Assembling rear spoiler

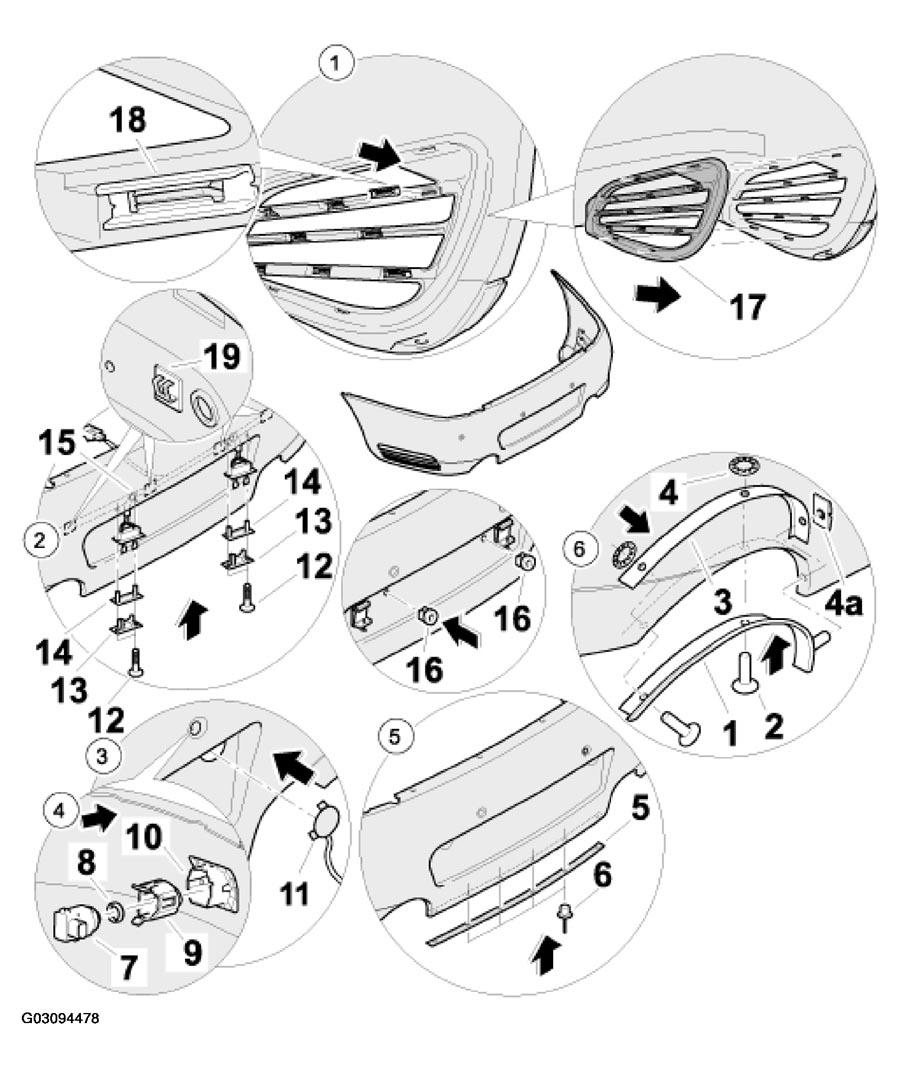

REAR SPOILER ASSEMBLING PROCEDURE AND INSTRUCTIONS
| No. | Procedure | Instructions |
|---|---|---|
| 1 | Install air outlet grille -17- | Put on air outlet grille -17-18- |
| 2 | Install licence plate light | Clean the bearing surfaces of the wiring harness retainer on the inside of the rear spoiler. Affix new wiring harness retainer -19-15-14-13-12-16- |
| 3 | Clip in cover -11- | Pull in new securing cord and secure. |
| 4 | Install ParkAssistent sensor -7- | Engage installation housing -9-7-8- Refer to REMOVING AND INSTALLING SENSOR FOR PARKASSISTENT |
| 5 | Install lower retaining strip -5- | Push up lower retaining strip -5-6- |
| 6 | Install shield cover -2- | Insert shield -3-2-1-3- |
| Install rear spoiler | See INSTALL REAR SPOILER |
