Additional instructions for replacing the rear spoiler

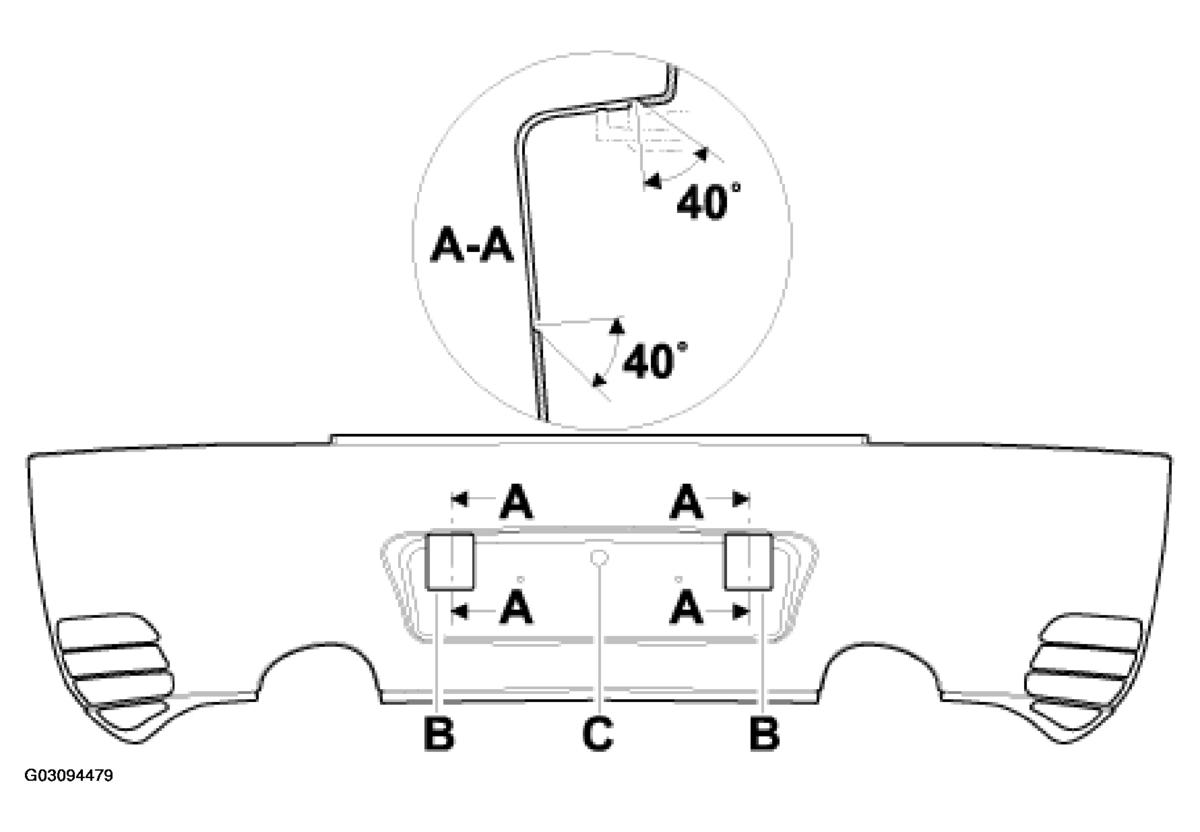

Fig 1: Identifying Rear Spoiler Adjustments

Courtesy of PORSCHE OF NORTH AMERICA, INC.

NOTE:

• Additional cut-outs must be made for the impact horns (USA version) in the rear spoiler before the new component is painted.
• For the ParkAssistent equipment version, no additional bore must be made on the new component. A special spare part is available for this version which contains the bores and retainer plates to hold the ParkAssistent.

1. Drill hole -C-  in accordance with the markings inside the rear spoiler. Refer to Fig 1 .
2. Saw out cut-outs -B-  in accordance with the markings inside the rear spoiler.
3. Slant the upper and lower cut edges of the cut-outs -B-  at an angle of -40°-  (see cut -A-A-  in Fig 1 ).
