Component arrangement

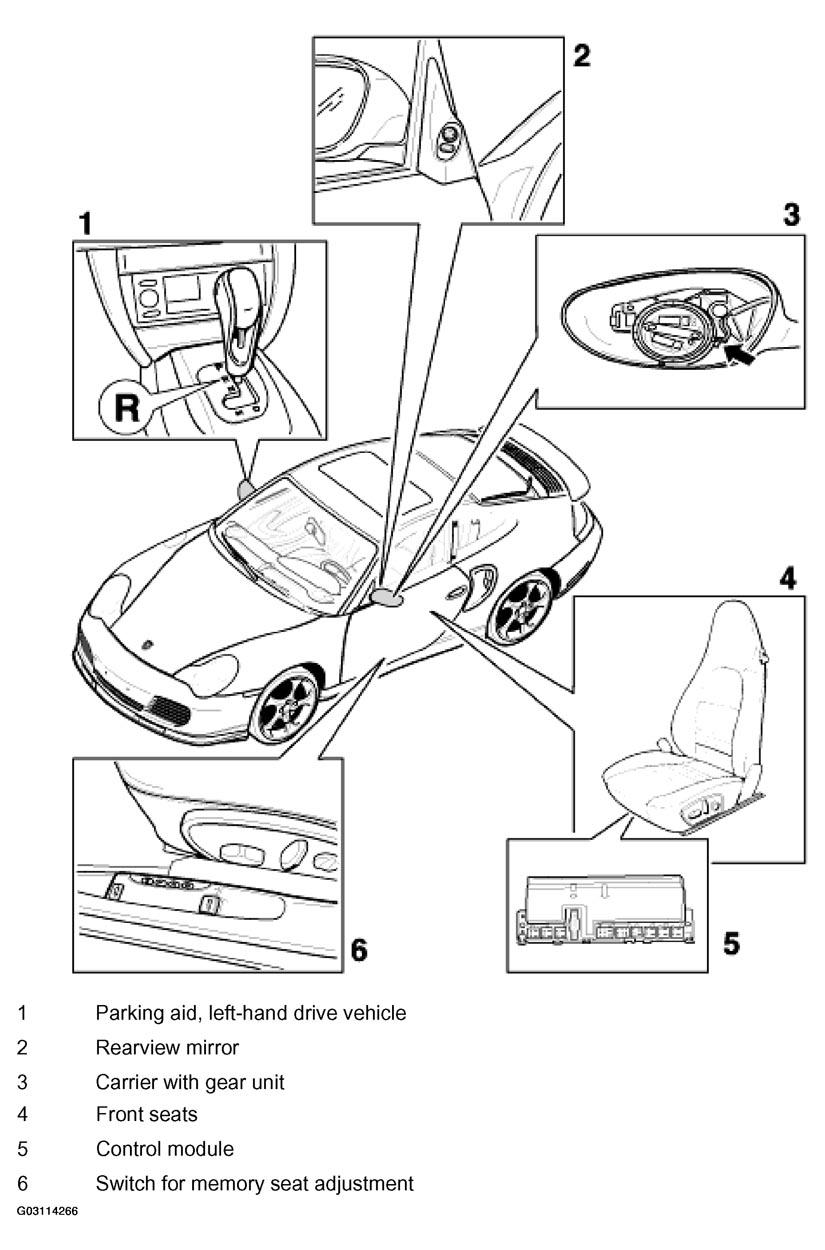

Fig 1: Locating Component Arrangement - Seat Memory
G03114266Courtesy of PORSCHE OF NORTH AMERICA, INC.
  1. Parking aid, left-hand drive vehicle
  2. Rearview mirror
  3. Carrier with gear unit
  4. Front seats
  5. Control module
  6. Switch for memory seat adjustment
