Removing inner sill

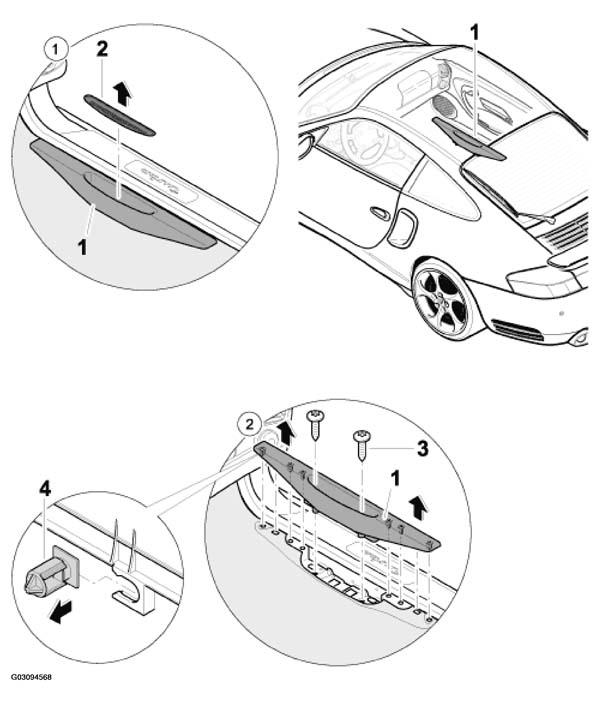

Fig 1: Removing Inner Sill (Passenger's Side)
G03094568Courtesy of PORSCHE OF NORTH AMERICA, INC.
REMOVING INNER SILL (PASSENGER'S SIDE)

No. Procedure Instructions
1 Undoing fastening screws -2-  Lift rubber mat -2-3-
2 Removing sill -1-  Lift sill -1-4-
