Removing Rear Spoiler
NOTE:
The spoiler can only be removed from the rear lid when the extension elements are extended. After retracting or extending three times with an obstacle, the control module detects the obstacle and switches off. The control module is reset by switching the ignition off and on. In order to remove the spoiler in the case of malfunctions in the drive module, lift the spoiler manually and support with support pads.
CAUTION:
Damage will result if emergency release of the drive module is carried out incorrectly!
- Always make sure to observe the exact sequence for emergency release of the drive module!
- During emergency release, the extension element retracts suddenly!
- Wear gloves during emergency release.
- Before release, cover off the painted areas of the lid near the extension elements with adhesive tape in order to avoid paint damage.
- During emergency release, the spoiler must be held tightly by an assistant.

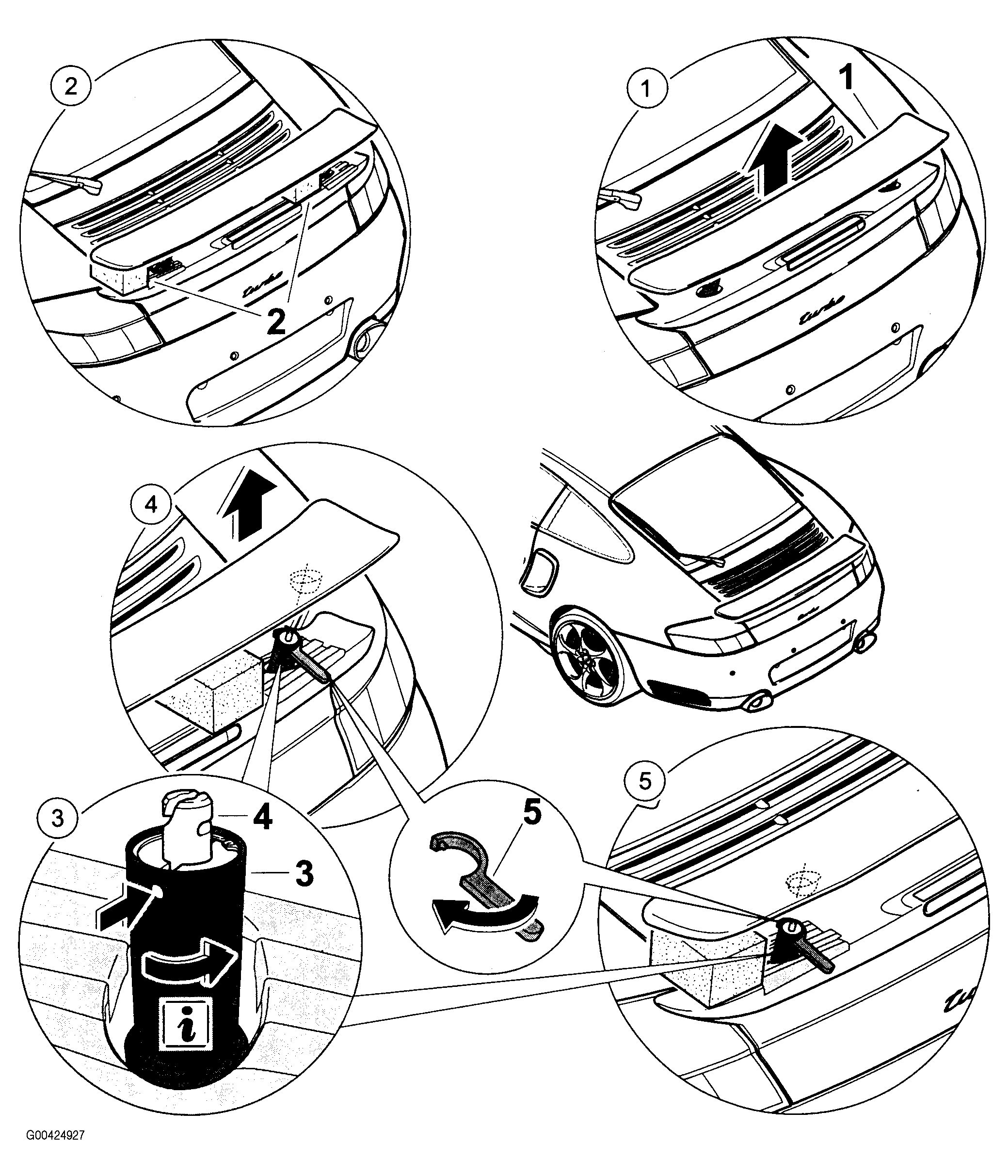

REMOVING REAR SPOILER
| No. | Procedure | Instructions |
| 1 | Extend spoiler -1- (with drive module intact) | Extend spoiler manually using the rocker switch with the ignition switched on. |
| 2 | Lift up spoiler -1- (if drive module is faulty) | Pull spoiler upwards and push in two support pads -2- approx. 60 mm high on the right and left between the rear lid and the spoiler. Note: use suitable packaging material (e.g. styropore pad, cardboard) as a support pad. The support pads should only be pushed in to the positions shown in Fig 1 . |
| 3 | Position outer tubes of the extension elements | Align the bore on the outer tube of the extension element -arrow-
with the bore of the closure peg -4-
by turning the outer tube -3-
. The outer tube should be turned in an anti-clockwise direction only. |
| 4 | Unlock right extension element | Insert hook wrench into the bores and turn clockwise by 90°. |
| 5 | Unlock left extension element | Insert hook wrench into the bores and turn clockwise by 90°. |
| Remove spoiler -1- | Lift the spoiler up and off. |
