Removing Air Inlet
REMOVING AIR INLET

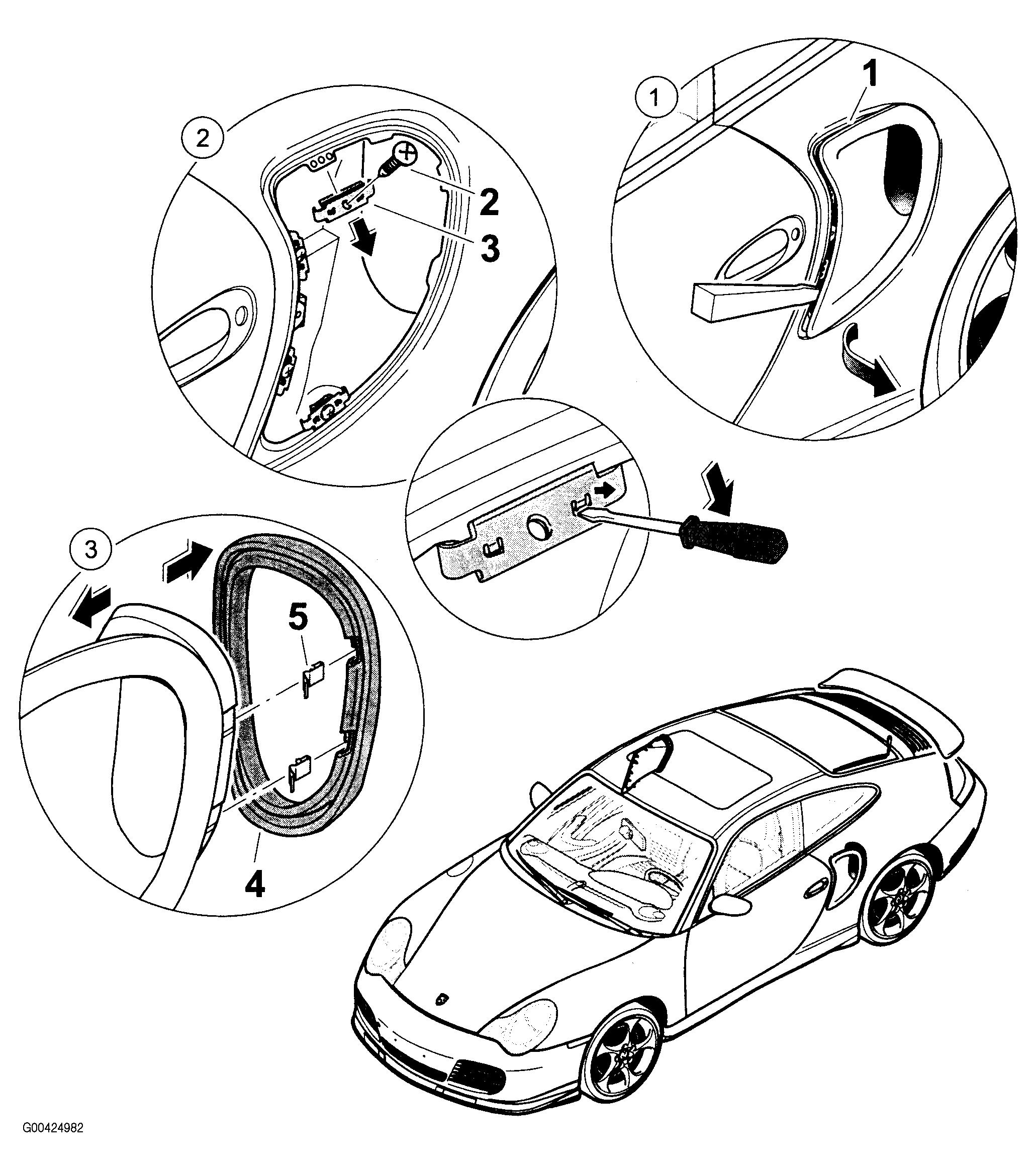

| No. | Procedure | Instructions |
| 1 | Remove air inlet -1- | Lift up air inlet -1- at the front edge evenly using an assembly wedge, disengage and pull forwards out of the air duct. |
| 2 | Remove retaining clips -3- | Unscrew sheetmetal screws -2- and pull off retaining clips -3- . If necessary, the tabs on the clips must be bent upwards using a screwdriver beforehand. The retaining clips must be replaced for installation. |
| 3 | Pull off seal -4- | Pull off seal -4- . Pull off spring clips -5- . |
