Disassembling And Assembling Pump Unit: Notes

NOTE: The hydraulic lines, banjo bolts and the sealing rings should always be replaced when replacing the hydraulic cylinder or the pump drive.

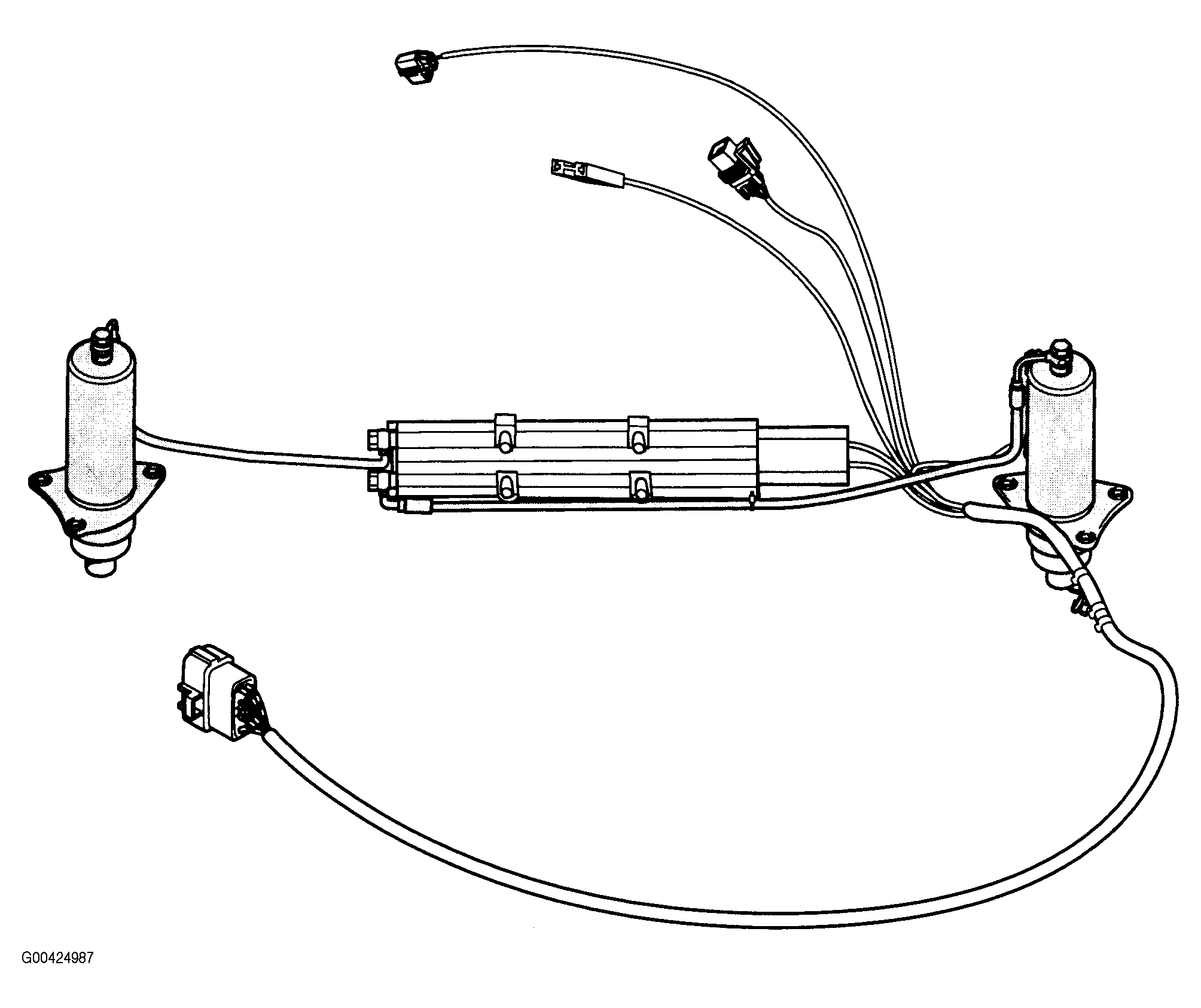

Fig 1: Identifying Pump Unit
G00424987Courtesy of PORSCHE OF NORTH AMERICA, INC.
