Removing bulb for parking light

  1. Switch off light. Remove main headlight.
  2. Open side cover and turn the parking light bulb socket out of the headlight reflector (do not pull on the wires).

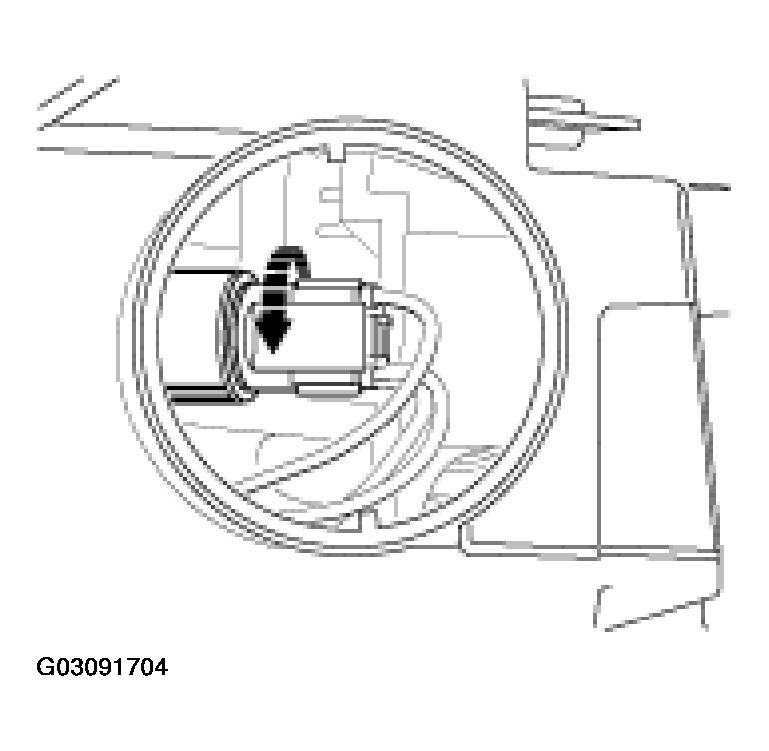

    Fig 1: Removing Bulb For Parking Light
    G03091704Courtesy of PORSCHE OF NORTH AMERICA, INC.
  3. Unscrew defective bulb from the parking light bulb socket (bayonet lock).
