Removing bulb for fog light

  1. Switch off light. Remove main headlight.
  2. Rotate the round cover in the headlight housing counter-clockwise and remove.
  3. Disconnect electrical plug connection -(arrow)-  from the defective bulb.

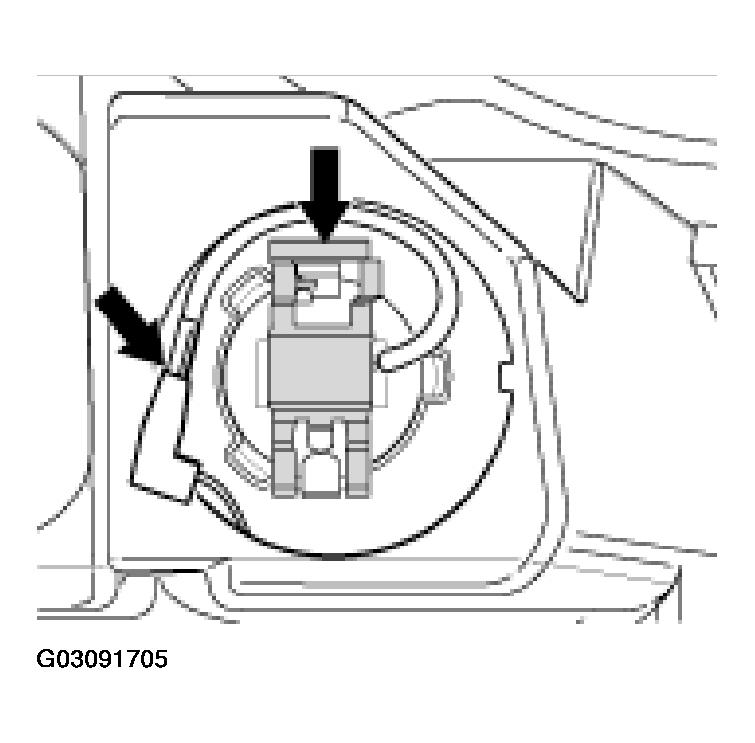

    Fig 1: Removing Bulb For Fog Light
    G03091705Courtesy of PORSCHE OF NORTH AMERICA, INC.
  4. Press down retaining bracket -(arrow)-  and swivel to the left.
  5. Remove defective bulb.
