Removing bulb for auxiliary headlight

NOTE:

• The bulb for auxiliary headlights (high beam headlight/headlight flasher) is located beneath the gas discharge lamp for dipped beam/high beam headlight!

1. Switch off light. Remove main headlight.
2. Unscrew fastening screws (2 ea.) and open rear closure cap. Unscrew bulb for the auxiliary headlight (bayonet lock).
3. Release and disconnect electrical connection of the defective bulb.

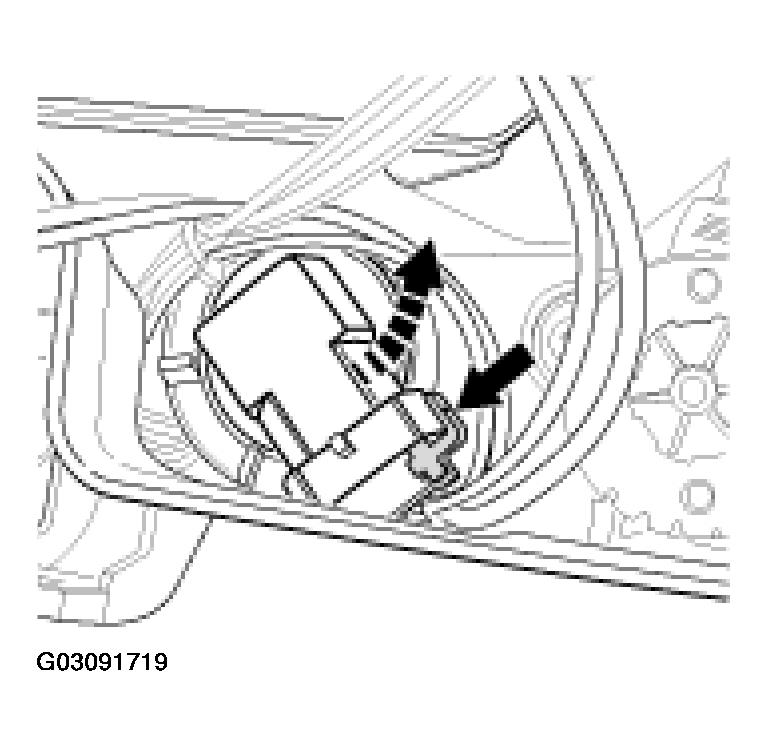

Fig 1: Removing Bulb For Auxiliary Headlight

Courtesy of PORSCHE OF NORTH AMERICA, INC.
